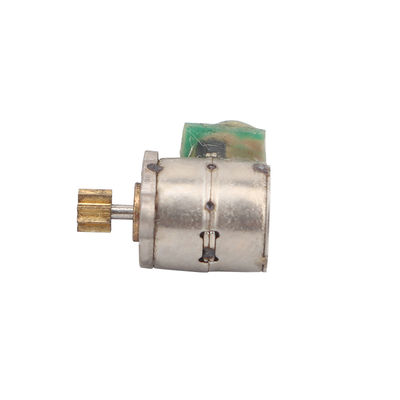

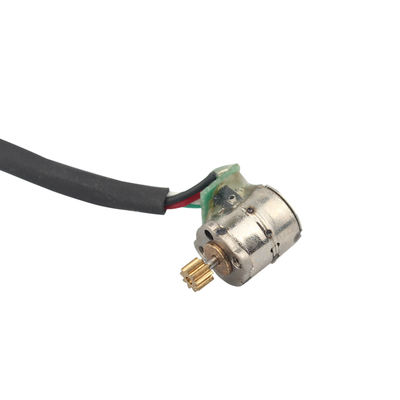

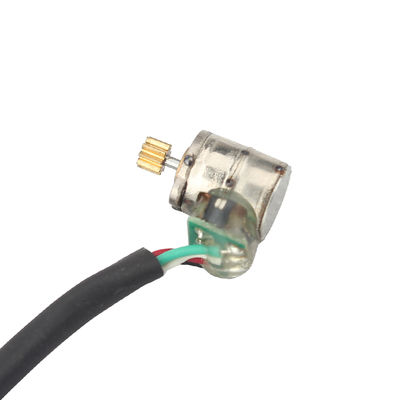

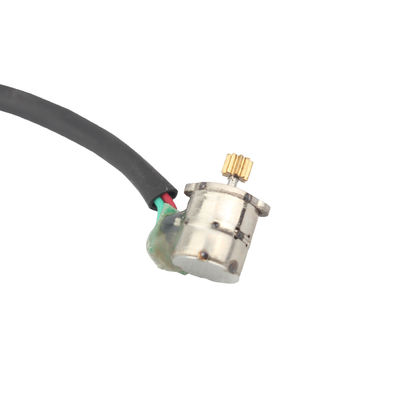

6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor
| Tempat asal | CINA |
|---|---|
| Nama merek | V-motor |
| Sertifikasi | RoHS |
| Nomor model | VSM0620 |
| Kuantitas min Order | 1 buah |
| Harga | US$2~5 |
| Kemasan rincian | kotak melepuh secara khusus disesuaikan untuk produk, yang dapat melindungi produk dengan baik. Kema |
| Waktu pengiriman | 3 ~ 15 hari |
| Syarat-syarat pembayaran | T/T, D/P |
| Menyediakan kemampuan | 100000/bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | jenis | Motor Stepper Mini 2 Fasa |
|---|---|---|---|
| Langkah Sudut (derajat) | 18° | Voltase | 3.3v |
| Perlawanan | 12 ohm | Saat Ini / Fase | 0,25A |
| Menyoroti | 6mm micro stepper motor 3.3V,2 phase mini step motor,long life micro stepper motor |
||
Deskripsi Produk
6mm Diameter PM micro stepper motor 3.3V Long life 2 phase mini step motor
VSM0620 is a miniature precision miniature stepping motor, the outer diameter is 6mm, the length is 7mm, the length is 7mm, and the shaft diameter is 0.8mm. The shaft length can be changed according to the needs.
Gear applications can also be added according to customer needs
Due to its small size, high precision, and easy control, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical instruments, and other fields.
The motor input part is F, which can be changed into connecting lines, pins, PCB, FPC and other forms according to customer needs.
If you are interested in our motors, you can contact me anytime
Mounting brackets can be replaced according to customer requirements.
6mm micro stepper motor parameter sheet:
| PRODUCT NAME | 6 MM MICRO STEPPER MOTOR |
| MODEL | VSM0620 |
| MAX. STARTING FREQUENCY | 1300 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 2000 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 0.7gf-cm min. (AT 500 PPS , 3.3V DC) |
| PULL OUT TORQUE | 0.9gf-cm min. (AT 500 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 3.0mA (max.) |
| INSULATION RESISTENCE | 1 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
6mm micro stepper motor torque curve:
6mm micro stepper motor outside drawing:
Product display:
Service and Customization:
This kind of small motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control.
User can customize the motor resistance, installation size, outlet shape and size.
For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.
Packaging and Shipping information:
All samples are packed in foam sponges in cartons.
For mass production, mass-produced products are packaged in cartons.
For sea shipping (mass production), cartons are packed on pallets.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
