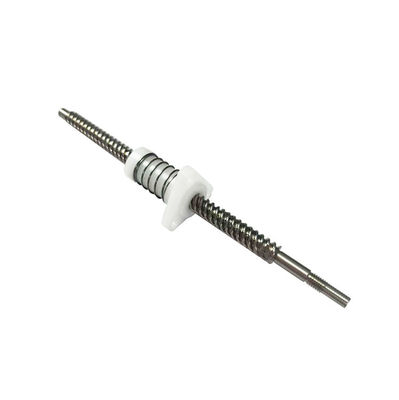

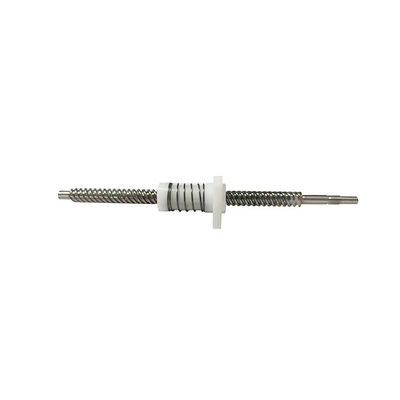

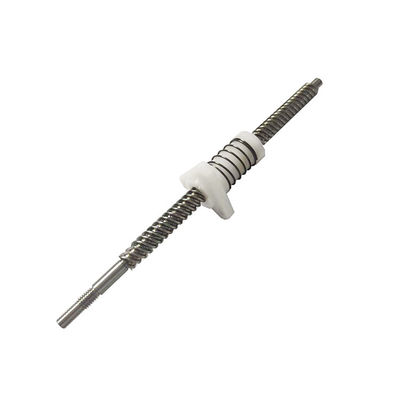

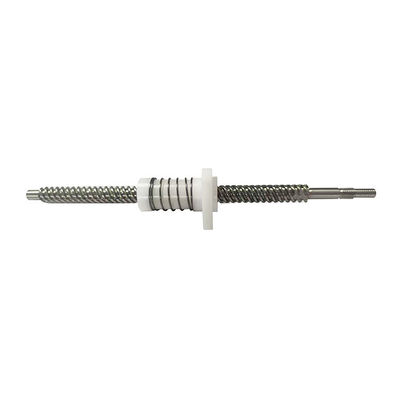

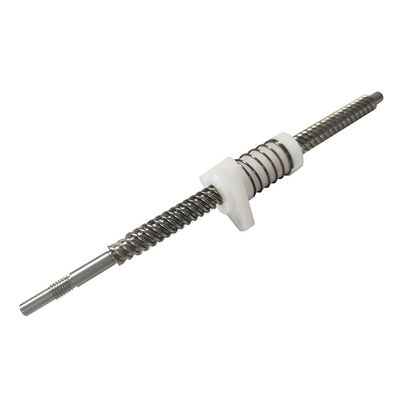

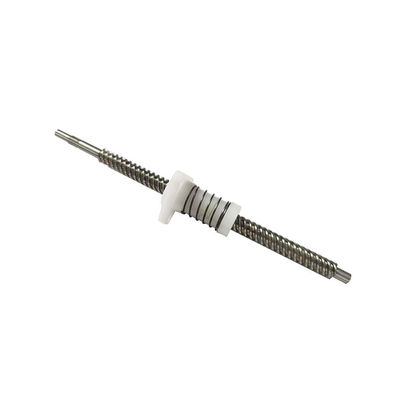

Customizable Trapezoidal Lead Screw with 9.53mm Diameter and 12.7mm Lead Anti-backlash Nut
| Tempat asal | Jiangsu, Cina (Daratan) |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | 0102-0615 |
| Kuantitas min Order | 1 unit |
| Harga | $33 - $48 / Units |
| Kemasan rincian | Paket ekspor standar, atau dapat disesuaikan |
| Waktu pengiriman | 15-30 hari kerja |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Menyediakan kemampuan | 100.000 unit per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Model sekrup timah | Tr9.53*12.7 | Jenis produk | Sekrup timah + Mur anti-reaksi balik |
|---|---|---|---|
| Jenis sekrup timah | Trapezoidal sekrup timbal | Diameter sekrup | 9.53mm (dapat disesuaikan) |
| Sekrup memimpin | 189mm (dapat disesuaikan) | Panjang sekrup | Tersedia |
| Menyoroti | 9.53mm diameter Lead Screw,12.7mm lead Trapezoidal Screw,Customizable Anti-backlash Nut |
||
Deskripsi Produk
Customizable Trapezoidal Tr Lead Screw 9.53mm Diameter with Anti-Backlash Nut
This high-quality trapezoidal Tr lead screw comes with an anti-backlash nut, designed for precision applications. The standard configuration features a 9.53mm diameter with 12.7mm lead, but we offer complete customization options to meet your specific requirements.
Key Features
- Available in diameters from 6mm to 15mm
- Customizable length and design specifications
- Includes anti-backlash nut for improved precision
- Recommended larger diameters for lengths exceeding 300-400mm to maintain straightness
- Full design customization available including shaft modifications
Mechanical Dimensions (mm)
Technical Specifications
| Product Model No. | 0102-0615 |
|---|---|
| Product Type | Lead screw + Anti-backlash nut |
| Lead Screw Type | Trapezoidal |
| Screw Diameter | 9.53mm (adjustable) |
| Screw Lead | 12.7mm (adjustable) |
| Screw Length | 189mm (adjustable) |
| Screw Model No. | Tr9.53*12.7 |
Material and Manufacturing Options
| Screw Material | 45#, 40Cr, YF45MnV, SUS304, SUS316, etc. |
|---|---|
| Nut Material | Phosphor bronze, Zinc tin bronze, Aluminum zinc bronze, Brass, Ductile iron, Stainless steel, Nylon |
| Accuracy Level | 7 level, 8 level, 9 level |
| Processing Method | Cutting processing, Roller extrusion |
| Processing Range | Single head, Multiple heads, Various tooth types |
| Sweeping Direction | Left-handed, Right-handed |
Screw Datasheet
| No. | Spec Model | Outer Dia | Lead | Thread No. | Tooth Distance | Outer Dia |
|---|---|---|---|---|---|---|
| 1 | Tr3.5*1-N1-RH | 3.5 | 1 | 1 | 1 | 3.5 |
| 2 | Tr3.5*0.6096-N1-RH | 3.5 | 0.6096 | 1 | 0.6096 | 3.5 |
| 3 | Tr3.5*2.4384-N2-RH | 3.5 | 2.4384 | 2 | 1.2192 | 3.5 |
| 4 | Tr4-RH | 4 | 4 | |||
| 5 | Tr5*1-N1-RH | 5 | 1 | 1 | 1 | 5 |
| 6 | Tr5*2-N2-RH | 5 | 2 | 2 | 1 | 5 |
| 7 | Tr5*4-N4-RH | 5 | 4 | 4 | 1 | 5 |
| 8 | Tr5*6-N6-RH | 5 | 6 | 6 | 1 | 5 |
| 9 | Tr6*1-N1-RH | 6 | 1 | 1 | 1 | 6 |
| 10 | Tr6*2-N2-RH | 6 | 2 | 2 | 1 | 6 |
Product Detail Presentation
Customization and Support
We provide comprehensive customization services for this lead screw. Our engineering team can work with you to modify the design to meet your exact specifications. Contact our sales team for samples, 2D drawings, and 3D STEP files once your final design is confirmed.
