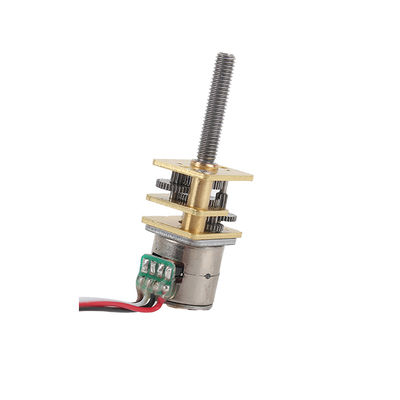

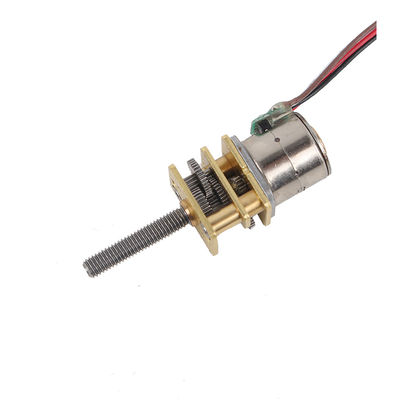

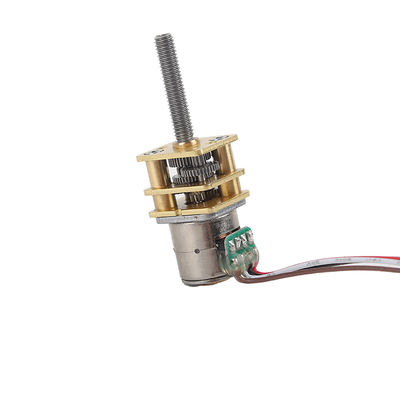

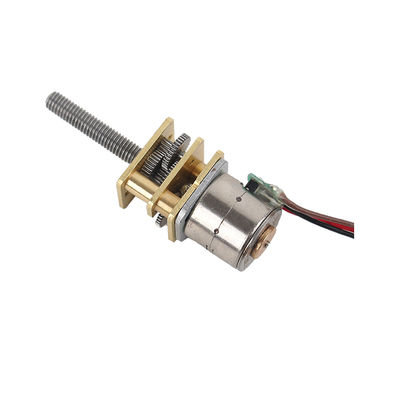

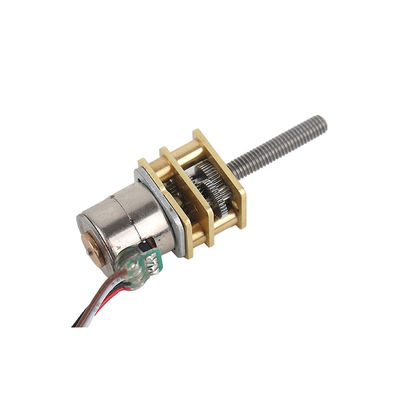

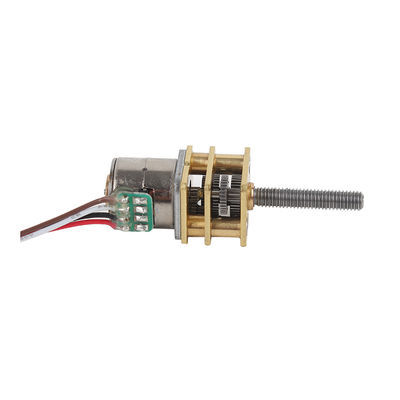

10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | Vic-Tech |
| Sertifikasi | ISO9001 |
| Nomor model | VSM10-816G |
| Kuantitas min Order | 1 |
| Harga | $3.45-7 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | Jenis | Magnet permanen |
|---|---|---|---|
| Arus Per Fasa | 150 mA | Voltase | 3.3V~12V |
| Perlawanan | 40Ω±7% | Metode yang menarik | 2-2 fase |
| Rasio gigi | 1: 2 ~ 1: 1000 | Kecepatan | 3 ~ 1500rpm |
| Sudut langkah | 18° | Lemparan timah | 0,5 |
| Batang | sekrup M3 | Rotasi | CW CCW |
| Diameter motor | 10mm | Sudut resolusi | 0,05 ~ 6 derajat |
| Nomor model | VSM10-816G | ||
| Menyoroti | 150 mA Mini Gear Motor,3.3V~12V 2 Phase Stepper Motor,40Ω±7% Micro Stepper Motor |
||
Deskripsi Produk
Mini Gear Motor 10mm with Right Angle Metal Geared Step Motor 2 Phase Stepper Motor
10mm diameter mini gear motor with 5V micro geared stepper motor and 2 phase stepper motor gearbox. The motor features a basic step angle of 18 degrees (20 steps per turn), with gearbox reduction providing final rotation angle resolution from 0.05° to 6° for precise position control applications.
Constructed with precious metal brushed DC motor and precision metal reducer. Available gear reduction ratios range from 1:2 to 1:1000 to meet various speed and torque requirements. The gearbox is manufactured using advanced international processing equipment for high precision, efficiency, and low noise operation.
Key Features
- Multiple input options: probe structure, FPC, FFC, PCB cable
- Versatile output structures: circular axis, D axis, wire rod
- High reliability through optimized manufacturing processes
- Precision metal gearing for smooth operation
- Wide range of gear ratios available
Specifications
| Model Number | VSM10-816G |
|---|---|
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 150 mA |
| Voltage | 3.3V~12V |
| Resistance | 40Ω±7% |
| Exciting method | 2-2 Phase |
| Gear Ratio | 1:2~1:1000 |
| Certification | ISO9001 |
| Speed | 3~1500rpm |
| Step Angle | 18° |
| Lead Pitch | 0.5 |
| Shaft | M3 screw |
| Rotation | CW/CCW |
Shaft Types
Standard output shaft configurations available, with customization options based on customer drawings. Contact our customer service for more details.
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd specializes in micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With a 20-year experienced R&D team, we provide custom design and development services, maintaining our position as an industry pioneer through quality and reliability.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, serving domestic and international markets including North America, Northern Europe, and Southeast Asia with a team of 51-100 professionals.
2. How can we guarantee quality?
Pre-production samples for approval and final inspection before shipment ensure consistent quality standards.
3. What can you buy from us?
Stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why choose us?
Specializing in micro motors since 2011 with custom design services and a focus on quality and innovation.
5. What services do we provide?
Flexible delivery terms (FOB, CIF, EXW, DDP) and payment options (T/T, Credit Card, PayPal) with support in English and Chinese.
