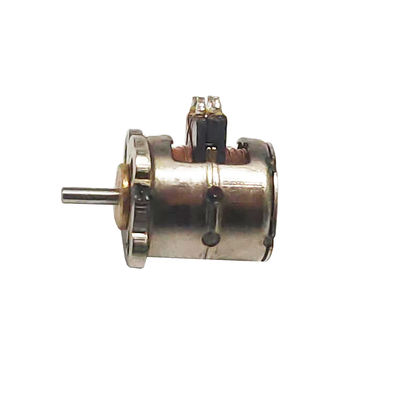

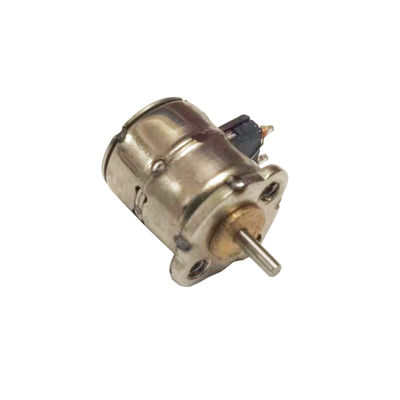

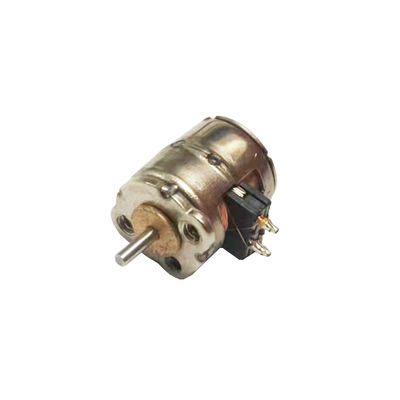

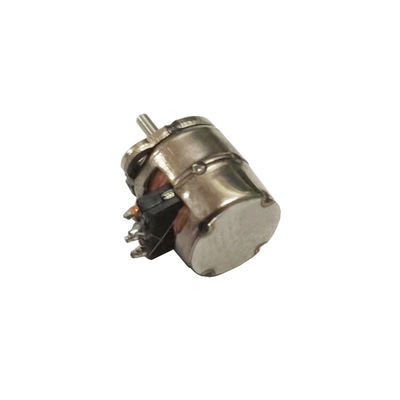

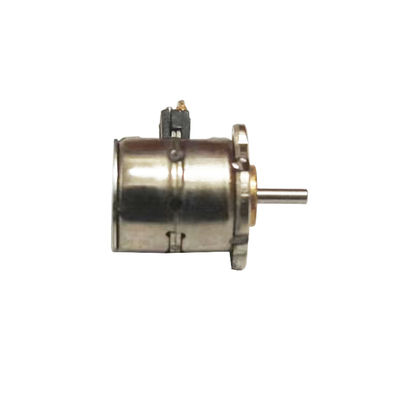

6mm 270mA 18 Degree Step Angle Micro Stepper Motor for Optical Instruments and Camera Lenses
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | VSM0620 |
| Kuantitas min Order | 1 |
| Harga | $1.70-5 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | Arus Per Fasa | 270mA |
|---|---|---|---|
| Diameter luar motor | 6mm | Panjang tubuh | 7mm |
| Diameter poros | 1mm | Sudut langkah | 18°/langkah |
| Tegangan Dinilai | 3.3V DC | Ketahanan kumparan | 20Ω±10% |
| Frekuensi awal maksimum | 1300 pps min. (Di 3.3V DC) | Frekuensi berputar maksimum | 2000 pps min. (Di 3.3V DC) |
| Torsi tarik | 0,7 GF-CM Min (pada 800 pps, 3,3V DC) | Torsi Tarik | 0,9 GF-CM Min (pada 800 pps, 3,3V DC) |
| Kelas isolasi | Kelas E untuk kumparan | Kekuatan Isolasi | 100V AC untuk satu detik |
| Suhu operasi | -10 ~ 60 ℃ | ||
| Menyoroti | 270mA Micro Stepper Motor,18 Degree Step Angle Micro Stepper Motor,Optical Instrument Micro Stepper Motor |
||
Deskripsi Produk
6mm Micro Stepper Motor for 3.3V DC Optical Instrument Camera Lens
The VSM0620 micro stepping motor is a precision motor with an outer diameter of 6mm and body length of 7mm. Featuring a 1mm shaft diameter (adjustable length), this motor can be equipped with various output devices including gears, pulleys, worms, and screws. With a basic step angle of 18 degrees (20 steps per revolution), this compact motor offers high precision and easy control.
Ideal applications include:
- Cameras and optical instruments
- Lens mechanisms
- Flashlight assemblies
- Precision medical equipment
- Automatic door locks
Our team brings over a decade of stepper motor design and manufacturing experience, offering custom product development services to meet specific requirements.
Technical Specifications
| Product Name | 6mm micro stepper motor |
|---|---|
| Model No. | VSM0620 |
| Rated Voltage | 3.3 V DC |
| Coil Resistance | 20Ω±10% |
| No. of Phases | 2-2 Phases |
| Step Angle | 18°/Step |
| Max Starting Frequency | 1300 PPS min. (AT 3.3V DC) |
| Max Slewing Frequency | 2000 PPS min. (AT 3.3 V DC) |
| Pull-In Torque | 0.7 gf-cm min (AT 800 PPS,3.3 V DC) |
| Pull-Out Torque | 0.9 gf-cm min (AT 800 PPS,3.3 V DC) |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100V AC FOR ONE SECOND |
| Insulation Resistance | 10mΩ(DC 100 V) |
| Operating Temperature | -10~60℃ |
Packaging & Delivery
Selling Units: Single item in plastic box, outer paper box packaging
Standard Packaging: Single carton packing, 100-1000 pieces per box
Lead Time: 30 days after deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design services while maintaining our commitment to quality and reliability in global markets.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2011, we serve domestic and international markets including North America, Europe, and Southeast Asia with a team of 51-100 professionals.
How do we guarantee quality?
Pre-production samples for approval and final inspection before shipment ensure consistent product quality.
What products do we offer?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why choose us?
With over a decade of specialization in micro motor production, we combine technical expertise with custom design capabilities to meet specific application requirements.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP) and payment methods (T/T, Credit Card, PayPal, Cash) with support in English and Chinese.
