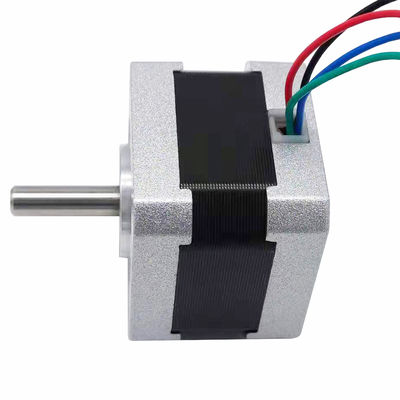

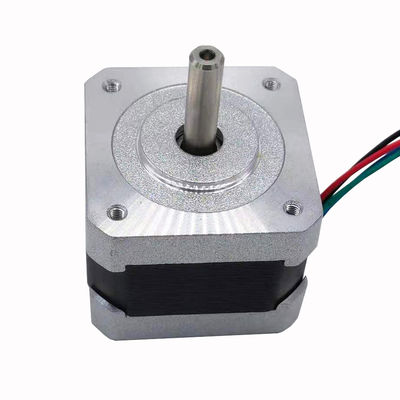

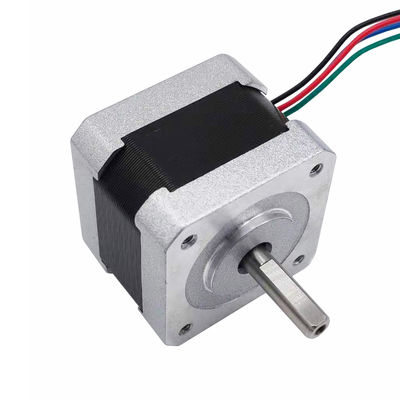

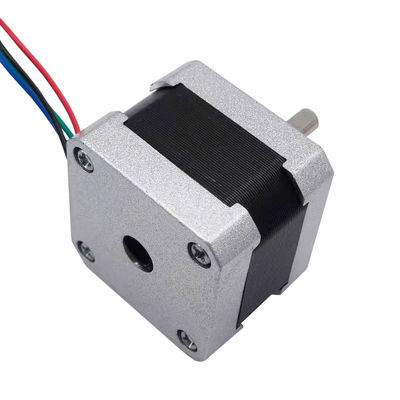

42mm Diameter 4 Wires Nema 17 Hybrid Stepper Motor with 1.8 Degree Step Angle for Precision Instruments
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | 42HS34-0404-16AF |
| Kuantitas min Order | 2 |
| Harga | $6-10 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Diameter | 42mm | Fase | 2 |
|---|---|---|---|
| Kabel | 4 | Sudut langkah | 1,8° |
| Arus Per Fasa | 400 mA | Perlawanan | 30Ω ± 10% |
| Tegangan Dinilai | 12V DC | Kelembaman | 2.8 kg.cm |
| Massa | 0,22kg | Kelas isolasi | B |
| Ukuran bingkai | 42*34mm | Rentang panjang | 20 ~ 51mm |
| Model | 42HS34-0404-16AF | Jumlah fase | 2 fase |
| Sudut langkah alternatif | 0,9° | ||
| Menyoroti | 42mm Diameter Hybrid Stepper Motor,4 Wires Nema 17 Stepper Motor,Nema 17 Hybrid Stepper Motor |
||
Deskripsi Produk
42mm Diameter 2 Phase 4 Wires Stepper Motor 1.8 Degree Step Angle Nema 17 Hybrid Stepper Motor
Product Description
The NEMA17 3D printer stepper motor is a hybrid stepping motor with dimensions of 42×34mm. The length can be customized between 20-51mm based on power requirements and can be further adjusted upon special request.
This hybrid stepping motor offers high control precision, excellent transmission resolution, and substantial output torque. It's ideal for applications in engraving machines, medical equipment, stage lighting, and precision instruments.
We can provide compatible driving devices or control systems and collaborate on custom development projects. The motor features a standard step angle of 1.8 degrees, with 0.9 degree options available upon request.
Design Layout (Unit: mm)
Specification
| PRODUCT NAME | NEMA17 stepper motor |
|---|---|
| MODEL | 42HS34-0404-16AF |
| RESISTANCE | 30Ω±10% |
| Step Angle | 1.8°/STEP |
| Current Per Phase | 400 mA |
| Rated voltage | 12 V DC |
| No. of phases | 2 phases |
| INERTIA | 2.8 Kg.cm |
| Mass | 0.22kg |
| INSULATION CLASS | B |
Packing & Delivery
Selling Units: Single item in plastic box, outer paper box packaging
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we offer custom design and development services. Committed to honesty, reliability, and quality, Vic-Tech Motor continues to pioneer international sales through global partnerships.
FAQ
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
2. How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment.
3. What can you buy from us?
Our products include stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering custom design and development services for stepper motors, geared motors, underwater thrusters, and motor controllers.
5. What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
