5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications

  • 5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications
  • 5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications
  • 5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications
  • 5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications
Tempat asal Jiangsu, Cina
Nama merek VIC-TECH
Sertifikasi RoHS
Nomor model SM5-PG-linear
Kuantitas min Order 1
Harga $6.50-15

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Diameter motor 5mm Fase 2
Arus Per Fasa 450mA Tegangan Mengemudi 5 V dc
Rasio kotak roda gigi 20,5:1 Sudut langkah 18°/langkah
Pitch sekrup timah 0.4mm Sekrup timbal dimulai 6 dimulai
Pukulan efektif 8mm Dorongan 250 g (5V/2400pps)
Jenis motor Motor stepper linier dengan kotak roda gigi Sudut langkah 22,5°
Timbal sekrup timbal 2.4mm Model No. SM5-PG-linear
Rasio gigi 20.25:1
Menyoroti

20.5:1 Gear Ratio Linear Stepper Motor

,

8mm Stroke Micro Stepper Motor

,

5V DC Stepper Motor with Gearbox
Tinggalkan pesan
Deskripsi Produk

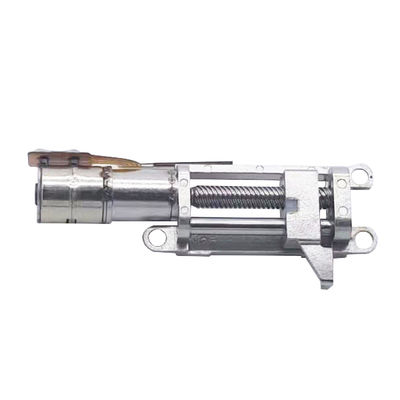

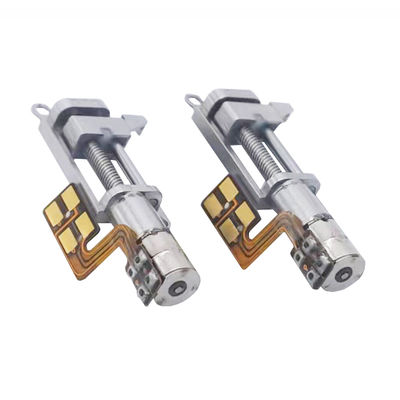

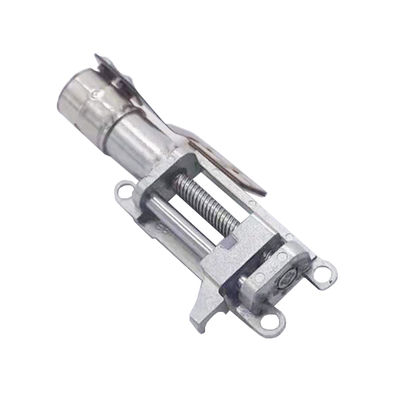

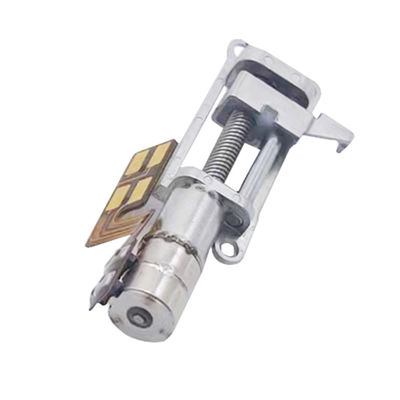

Micro 5mm Diameter Linear Stepper Motor with Gearbox and Slider
5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 0

This precision 5mm diameter linear stepper motor features an integrated 20.25:1 ratio gearbox and slider mechanism. The lead screw has a 0.4mm pitch with 6 starts, resulting in an effective lead of 2.4mm. With an 8mm stroke length, the slider provides precise linear motion controlled by the driver.

Designed for high-precision applications in electronics and instrumentation, this compact motor delivers reliable performance in space-constrained environments. Contact us for sample requests or custom solutions.

5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 1
Design Layout (Unit: mm)
5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 2
Specification
Model No. SM5-PG-Linear
Motor type Linear stepper motor with gear box
Motor diameter 5mm
Driving voltage 5 V DC
Gearbox ratio 20.5 : 1
Step Angle 18°/STEP
Lead screw pitch 0.4mm
Lead screw starts 6 starts
Step angle 22.5°
Stroke About 8mm
Thrust 250 g (5V/2400PPS)
Packing & Delivery
5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 3

Selling Units: Single item in plastic inner box with outer paper packaging

Package: Single carton packing, 100-1000 pieces per box

Lead Time: 30 days after deposit

Company Profile
5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 4 5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 5 5V DC Micro Linear Stepper Motor with 20.5:1 Gearbox and 8mm Stroke for High Precision Applications 6

Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor controllers.

With an experienced R&D team offering 20 years of motor development expertise, we provide custom design services. Committed to quality and innovation, Vic-Tech Motor continues to expand globally through reliable partnerships.
