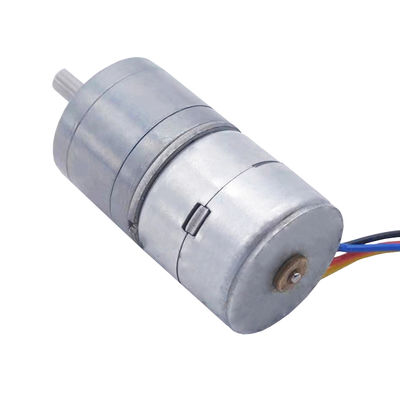

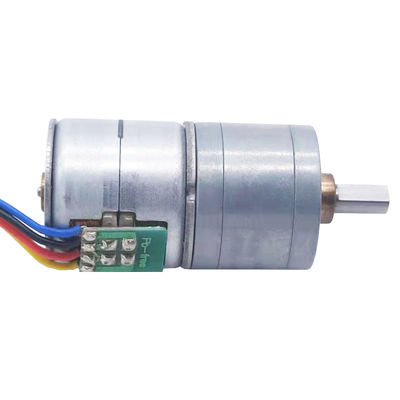

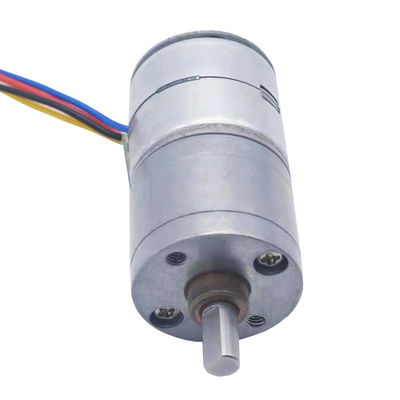

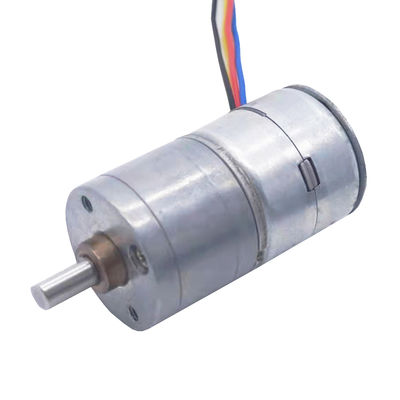

20mm Diameter 385mA Current 8V Rated Voltage Micro Stepper Motor for Urine Analyzer
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | 20by45- |
| Kuantitas min Order | 5 |
| Harga | $4.50-7 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Diameter motor | 20mm | Panjang motor | 18mm |
|---|---|---|---|
| Panjang kotak reduksi | 16.0mm, 17.5mm, 19mm, 20.5mm | Tegangan kerja | 2.4V hingga 12V |
| Kecepatan motorik | 10rpm, 20rpm, 30rpm, 45rpm, 50rpm, 60rpm, 100rpm, 200rpm, 500rpm | Fase | 2 |
| Arus Per Fasa | 385mA | Resistensi per fase | 10Ω ± 10% (25 ℃) |
| Frekuensi awal maksimum | 1000 pps | Frekuensi respons maksimal | 1200 pps |
| Sudut langkah | 1,8 derajat | Tegangan Dinilai | 8V |
| Induktansi per fase | 6.3mh | Jumlah kabel | 4 |
| Model | 20BY45 | ||
| Menyoroti | 20mm Diameter Stepper Motor,385mA Current Micro Stepper Motor,8V Rated Voltage Geared Stepper Motor |
||
Deskripsi Produk
20 mm Diameter 2-Phase 4-Wire Stepper Motor for Urine Analyzer
The SM20 reduction stepper motor features a compact 20mm diameter design. The motor length is 18mm with reduction box options of 16.0mm, 17.5mm, 19mm, and 20.5mm.
Technical Specifications
- Working voltage range: 2.4V to 12V
- Available speed options: 10rpm, 20rpm, 30rpm, 45rpm, 50rpm, 60rpm, 100rpm, 200rpm, and 500rpm
- Precise control: Speed and stop position are not limited by pulse signal frequency or number of pulses
- Stable performance: Unaffected by load changes when operating within specifications
Design Layout
Detailed Specifications
| Model | 20BY45 |
|---|---|
| Product Name | Geared stepper motor |
| Motor diameter | 20mm |
| Resistance | 10Ω ± 10%/ phase (25℃) |
| Max Starting Frequency | 1000 pps |
| Max Response Frequency | 1200 pps |
| Step angle | 1.8 degree |
| Rated voltage | 8 V |
| Inductance/phase | 6.3mH |
Packaging & Delivery
- Selling Units: Single item in plastic box with outer paper box
- Package: Single carton packing, 100-1000 pieces per box
- Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With a 20-year experienced R&D team, we offer custom design and development services, maintaining our position as an industry leader through quality and reliability.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2011, we serve domestic and international markets including North America, Northern Europe, Western Europe, and Southeast Asia with a team of 51-100 professionals.
How can we guarantee quality?
We implement pre-production samples and final inspections before shipment to ensure consistent quality.
What products do we offer?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why choose us?
With over a decade of specialization in micro motor production and custom development services, we combine technical expertise with reliable quality.
What services do we provide?
- Delivery Terms: FOB, CIF, EXW, DDP
- Payment Options: T/T, Credit Card, PayPal, Cash
- Currencies: USD, EUR, CNY
- Languages: English, Chinese
