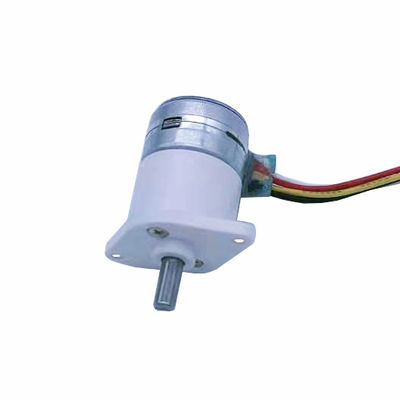

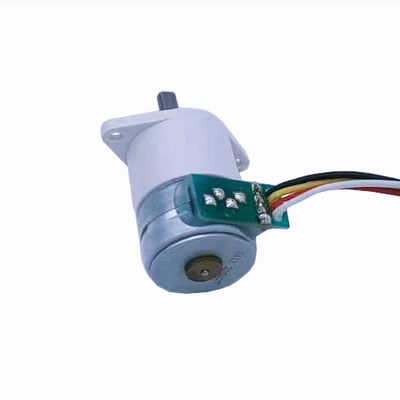

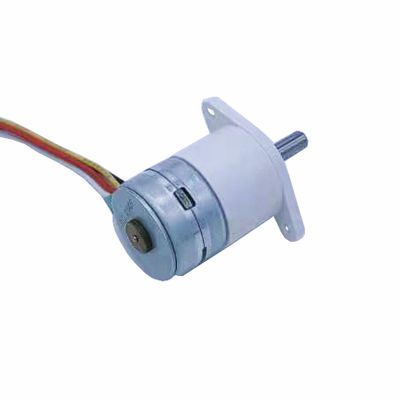

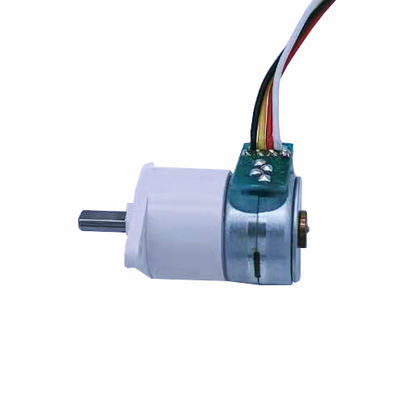

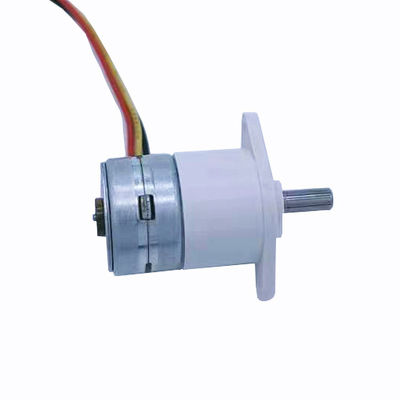

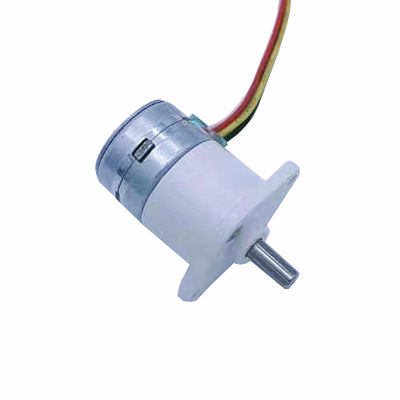

15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC

  • 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
  • 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
  • 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
  • 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
  • 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
  • 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC
Tempat asal Jiangsu, Cina
Nama merek VIC-TECH
Sertifikasi RoHS
Nomor model SM15-845G
Kuantitas min Order 2
Harga $3.60-7

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Diameter motor 15mm Fase 2
Kabel 4 Arus Per Fasa 200mA
Perlawanan 15Ω±7% Rasio transmisi 100:1
Ukuran gearbox 10*24*9 (v) Rasio reduksi 2: 1,5: 1,10: 1,15: 1,20: 1,30: 1,36: 1,50: 1,63: 1,67: 1,89: 1,100: 1,110: 1,120 : 1.150: 1.172: 1.
Sudut langkah 18° Voltase 5 VDC
Jenis motor Magnet permanen Sudut langkah dasar 18 derajat
Langkah per belokan 20 Resolusi Rotasi 0,05 ~ 6 derajat
Bahan gearbox logam presisi
Menyoroti

15mm Geared Stepper Motor

,

18 Degree Step Angle Micro Stepper Motor

,

5 VDC 2 Phase Stepper Motor
Tinggalkan pesan
Deskripsi Produk
15mm Stepper Motor 2 Phase 4 Wires Geared Stepper Motor
This precision stepper motor combines a 15mm micro stepper motor with a 10×12mm metal reduction gearbox, offering customizable reduction ratios to meet specific application requirements.
15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 0 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 1
Key Features
  • Basic step angle of 18° (20 steps per revolution)
  • Final rotation angle resolution from 0.05° to 6°
  • Precision control for rotational positioning applications
  • Wide range of customizable reduction ratios available
  • Optimized speed and torque with proper driving frequency
Design Layout (Unit: mm)
15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 2
Specifications
Motor diameter 15mm
Resistance 15Ω ±7%
Transmission ratio 100:1
Gearbox size 10×24×9 (mm)
Reduction ratio options 2:1, 5:1, 10:1, 15:1, 20:1, 30:1, 36:1, 50:1, 63:1, 67:1, 89:1, 100:1, 110:1, 120:1, 150:1, 172:1, 210:1, 250:1, 275:1, 298:1, 380:1, 420:1, 500:1, 600:1, 1000:1
Step angle 18°
Voltage 5 VDC
Packing & Delivery
15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 3
Selling Units: Single item in plastic box, outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 days after deposit
Company Profile
15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 4 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 5 15mm 2 Phase 4 Wires Geared Stepper Motor with 18 Degree Step Angle and 5 VDC 6
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With a 20-year experienced R&D team, we provide custom design and development services, maintaining our position as an industry pioneer through quality and reliability.
FAQ
Who are we?
Based in Jiangsu, China since 2011, we serve domestic (35%), North American (25%), Northern European (20%), Western European (10%), and Southeast Asian (10%) markets with a team of 51-100 professionals.
How do we guarantee quality?
Pre-production samples for approval and final inspection before shipment ensure consistent quality standards.
What products do we offer?
Stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why choose us?
Our specialization in micro motors since 2011, combined with custom design services and technical expertise, delivers superior solutions.
What services do we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Options: T/T, Credit Card, PayPal, Cash (USD, EUR, CNY)
Languages: English, Chinese
