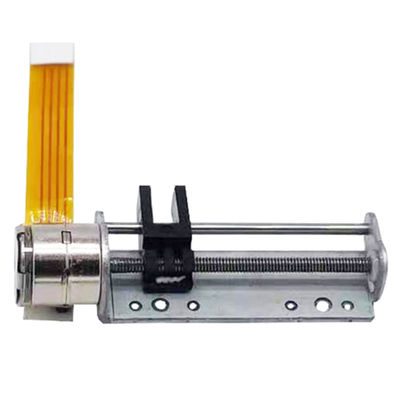

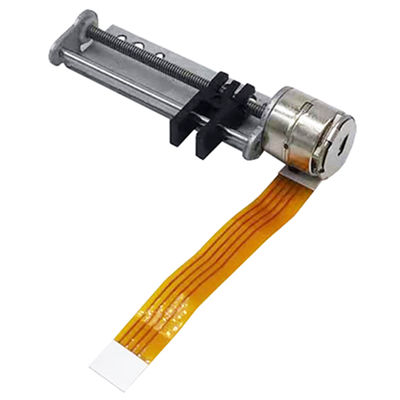

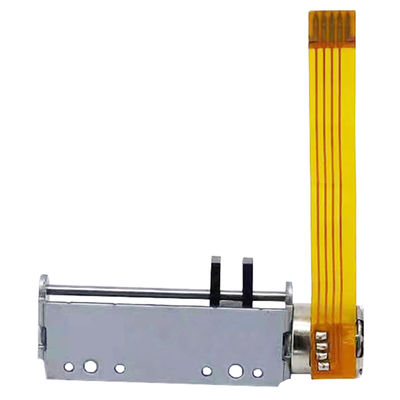

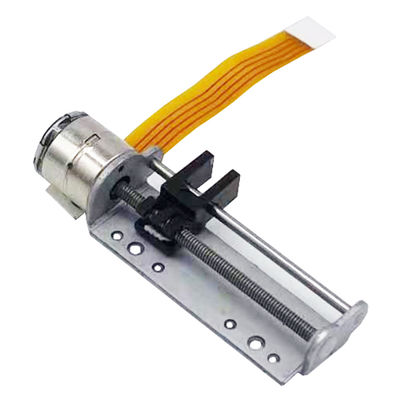

2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | VSM1069 |
| Kuantitas min Order | 2 |
| Harga | $2.20-7 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | Arus Per Fasa | 270mA |
|---|---|---|---|
| Diameter motor | 10mm | Tegangan Dinilai | 3.0 V DC |
| Ketahanan kumparan | 15Ω±10% | Sudut langkah | 18°/langkah |
| Frekuensi awal maksimum | 800 pps min | Frekuensi berputar maksimum | 1100 pps min |
| Tarik torsi | 3.0 GF-CM Min | TARIK KELUAR TORSI | 3.8 GF-CM Min |
| Kelas isolasi | Kelas E | Kekuatan Isolasi | 300 V AC |
| Resistensi isolasi | 50mΩ | Suhu operasi | -20 ~+70 ℃ |
| Lapangan Sekrup | 0.4mm | ||
| Menyoroti | 270mA Micro Stepper Motor,Micro Slider Screw Stepper Motor,Optical Instruments Micro Stepper Motor |
||
Deskripsi Produk
2 Phase 4 Wire Stepper Motor 10mm Micro Slider Screw Stepper Motor
The VSM1069 is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust, enabling precise positioning control.
With a basic step angle of 18° (20 steps per revolution), this motor achieves a displacement resolution of 0.02mm, making it ideal for applications requiring high-precision motion control. The actuator utilizes subdivision drive technology for smooth operation.
Key Features
- Compact 10mm diameter design
- High precision with 0.02mm resolution
- Versatile input options (FPC, connecting wire, or PCB)
- Customizable mounting bracket
- Wide operating temperature range (-20°C to +70°C)
- Ideal for cameras, optical instruments, medical devices, and automated systems
Design Layout (Unit: mm)
Specifications
| Parameter | Value |
|---|---|
| Product Name | VSM1069 Micro Stepper Motor |
| Motor Diameter | 10mm |
| Rated Voltage | 3.0 V DC |
| Coil Resistance | 15Ω±10% |
| Number of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Max Starting Frequency | 800 PPS min. (AT 3.0 V DC) |
| Max Slewing Frequency | 1100 PPS min. (AT 3.0 V DC) |
| Pull in Torque | 3.0 gf-cm min (AT 500 PPS, 3.0 V DC) |
| Pull out Torque | 3.8 gf-cm min (AT 500 PPS, 3.0 V DC) |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 300 V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ (DC 100 V) |
| Operating Temperature Range | -20°C to +70°C |
Packing & Delivery
Selling Units: Single item in plastic box, outer paper box packaging
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor controllers. With an experienced R&D team boasting 20 years of motor development expertise, we provide custom design services to meet specific application requirements.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2011, we serve domestic and international markets including North America, Europe, and Southeast Asia. Our team consists of 51-100 professionals dedicated to motor manufacturing.
How do we guarantee quality?
We implement strict quality control measures including pre-production samples and final inspection before shipment to ensure product reliability.
What products do we offer?
Our product portfolio includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors for various industrial applications.
Why choose us?
With over a decade of specialization in micro motor production, we combine technical expertise with custom design capabilities to deliver solutions tailored to your specific needs.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP) and payment methods (T/T, Credit Card, PayPal, Cash). Our team communicates in both English and Chinese to facilitate global business.
