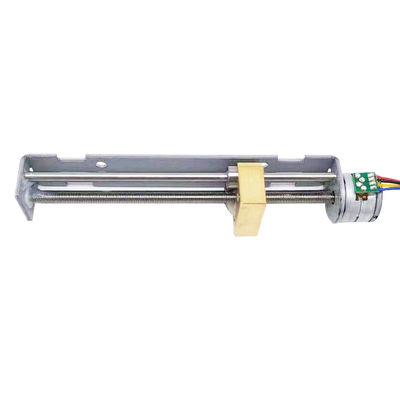

15mm Diameter Linear Stepper Motor with 1kg Thrust and 0.02mm Displacement Resolution for Precision Control
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | rohs |
| Nomor model | SM15-80L-T |
| Kuantitas min Order | 1 |
| Harga | $6.31-15 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | Arus Per Fasa | 385mA |
|---|---|---|---|
| Diameter motor | 15mm | Tegangan Dinilai | 6 V DC |
| Ketahanan kumparan | 15±10% ohm/FASE(20℃) | Sudut langkah | 18°/langkah |
| Metode eksitasi | 2 fase drive | Mode drive | Penggerak Bipolar |
| Dorongan tarik keluar | Lebih dari 230 g pada 700 pps | Frekuensi respons maksimal | Lebih dari 1200 pps |
| Frekuensi awal maksimum | Lebih dari 900 hal | Kelas isolasi | Kelas E untuk kumparan |
| Kekuatan Isolasi | 100 V AC selama satu detik | Resistensi isolasi | 50mΩ DC 500V |
| Kisaran suhu operasi | -0 ~+55 ℃ | ||
| Menyoroti | 15mm Diameter Linear Stepper Motor,1kg Thrust Linear Stepper Motor,0.02mm Displacement Resolution Linear Stepper Motor |
||
Deskripsi Produk
SM15-80L-T 2 Phases Copper Slider Linear Stepper Motor Dia 15mm With 1kg Thrust
Product Description
The SM15-80L-TL is a precision screw motor with a 0.4mm pitch between the output shaft and screw. This configuration generates thrust through screw rotation, achieving precise control with a basic step angle of 18 degrees (20 steps per revolution) and displacement resolution of 0.02mm.
The actuator uses subdivision drive mode to meet operational requirements. Our team brings over 10 years of stepper motor design, development, and production experience, enabling custom product development based on specific customer needs.
Design Layout
Specifications
| Model No. | SM15-80L-T |
|---|---|
| Motor diameter | 15mm |
| Rated Voltage | 6 V DC |
| Coil Resistance | 15±10% ohm/PHASE(20℃) |
| Current Per Phase | 400 mA/Phase(1000pps) |
| No.Of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Excitation Method | 2 Phases Drive |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 230 g AT 700 pps |
| Max Response Frequency | More Than 1200 PPS |
| Max Staring Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50MΩ DC 500V |
| Operating Temperature Range | -0~+55℃ |
| Motor surface temperature | 80℃ or less |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, dependability, and quality, Vic-Tech Motor continues to pioneer in global markets.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%) with a team of 51-100 professionals.
2. How can we guarantee quality?
- Pre-production samples before mass production
- Final inspection before shipment
- Final inspection before shipment
3. What can you buy from us?
stepper motors, linear motors, geared motors, micro motors, BLDC motors
4. Why choose us over other suppliers?
Vic-Tech Motor specializes in micro motor production since 2011, offering micro stepper motors, geared motors, underwater thrusters, and controllers with custom design services.
5. What services do we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
