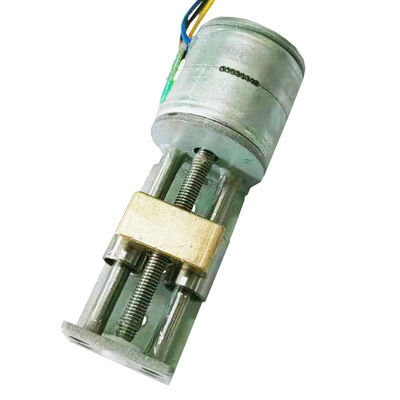

High Precision 4-wire 20mm Linear Stepper Motor with 1.5 kg Thrust for Precision Instruments
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | SM20-21L-T |
| Kuantitas min Order | 2 |
| Harga | $6.65-18 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Diameter motor | 20mm | Tegangan Dinilai | 12V DC |
|---|---|---|---|
| Jumlah fase | 2 fase | Sudut langkah | 18°/langkah |
| Arus Per Fasa | 770mA/fase | Ketahanan kumparan | 15,6 ± 7% ohm/fase |
| Metode eksitasi | Eksitasi fase 2 | Mode drive | 2-2 drive bipolar |
| Dorongan tarik keluar | Lebih dari 1200GF-CM pada 700 pps | Frekuensi respons maksimal | Lebih dari 1300 pps |
| Frekuensi awal maksimum | Lebih dari 1000 hal | Kelas isolasi | Kelas E untuk kumparan |
| Kekuatan Isolasi | 50mΩ DC 500 V | Kisaran suhu operasi | -15 ~+55 ℃ |
| Dorongan maksimum | 1,5 kg | ||
| Menyoroti | 4-wire Linear Stepper Motor,20mm Micro Stepper Motor,1.5 kg Thrust Stepper Motor with Slider |
||
Deskripsi Produk

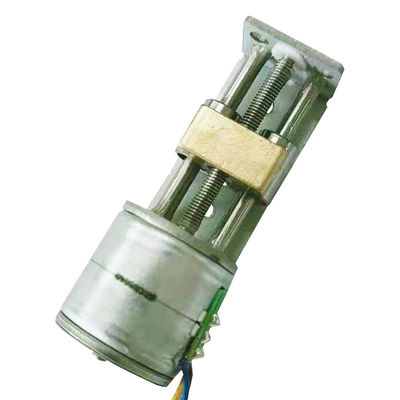

High Precision 4-wire Stepper Motor 20mm Linear Stepper Motor With Slider

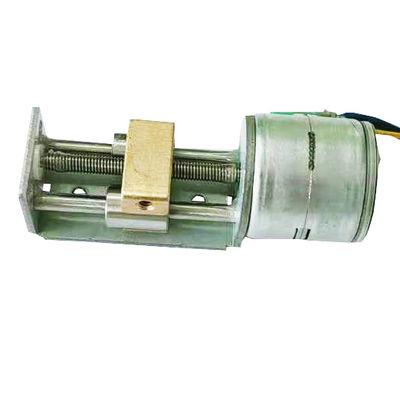

This 20mm diameter linear stepper motor features an integrated screw rod and slider assembly with a maximum thrust capacity of 1.5 kg. The motor provides precise linear motion control when paired with a compatible driver, making it ideal for integration with precision instruments and electronic devices. Custom configurations are available upon request.
Design Layout (Unit: mm)
Specification
| Model No. | SM20-21L-T |
|---|---|
| Motor diameter | 20mm |
| Rated voltage | 12 V DC |
| No. of phases | 2 phases |
| Step angle | 18°/Step |
| Current Per Phase | 770mA/Phase |
| Coil Resistance | 15.6±7% Ohm/Phase |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | 2-2 Bipolar Drive |
| Pull-Out Thrust | More Than 1200gf-cm AT 700 PPS |
| Max Response Frequency | More Than 1300 PPS |
| Max Starting frequency | More Than 1000 PPS |
| Insulation Class | Class E For Coils |
| Insulation Strength | 50MΩ DC 500 V |
| Operating Temperature Range | -15~+55℃ |
Packing & Delivery
Selling Units: Single item in plastic box, outer paper box packaging
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 days after deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an experienced R&D team offering 20 years of motor development expertise, we provide custom design services while maintaining our commitment to quality, reliability, and innovation in the global market.
FAQ
Who are we?
Based in Jiangsu, China since 2011, we serve domestic (35%), North American (25%), Northern European (20%), Western European (10%), and Southeast Asian (10%) markets with our team of 51-100 professionals.
How do we guarantee quality?
We conduct pre-production samples and final inspections before shipment to ensure consistent quality standards.
What products do we offer?
Our product line includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
Why choose us?
With our specialization in micro motors since 2011 and custom design capabilities, we offer technical expertise and reliable solutions for diverse applications.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP), payment methods (T/T, Credit Card, PayPal, Cash), and currencies (USD, EUR, CNY), with support in English and Chinese.
