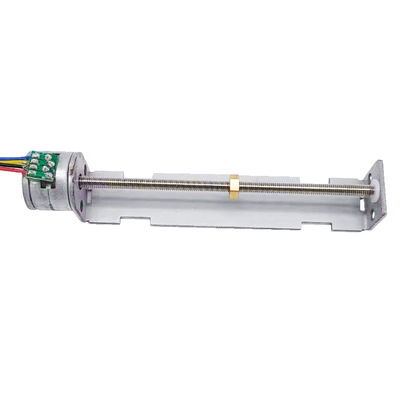

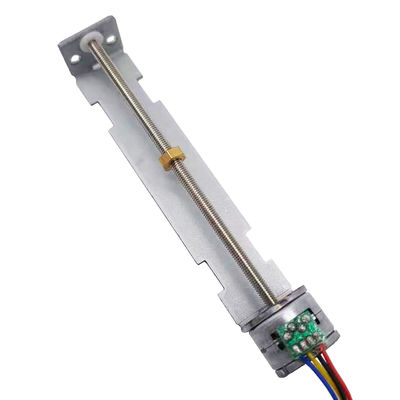

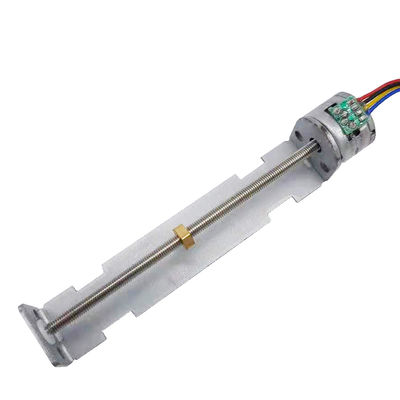

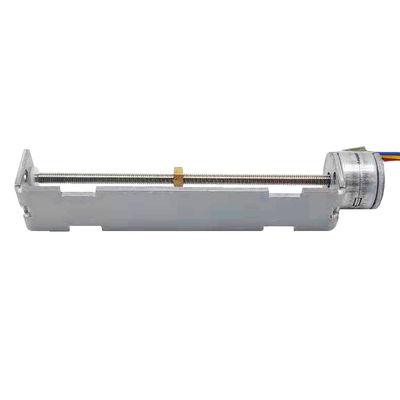

15mm 9V DC Miniature Slider Screw Stepper Motor with 0.02mm Displacement Resolution and 2 Phase Precision
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | rohs |
| Nomor model | SM15-77L-T |
| Kuantitas min Order | 1 |
| Harga | $6.31-15 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | Arus Per Fasa | 385mA |
|---|---|---|---|
| Diameter motor | 15mm | Tegangan Dinilai | 9VDC |
| Ketahanan kumparan | 15±10% ohm/FASE(20℃) | Sudut langkah | 18°/langkah |
| Metode eksitasi | Drive 1-2 phase | Mode drive | Penggerak Bipolar |
| Dorongan tarik keluar | Lebih dari 230 g pada 700 pps | Frekuensi respons maksimal | Lebih dari 1300 pps |
| Frekuensi awal maksimum | Lebih dari 900 hal | Kelas isolasi | Kelas E untuk kumparan |
| Kekuatan Isolasi | 100 V AC selama satu detik | Resistensi isolasi | 50mΩ DC 500V |
| Kisaran suhu operasi | -0 ~+55 ℃ | ||
| Menyoroti | 15mm Miniature Slider Screw Stepper Motor,9V DC PM Stepper Motor,0.02mm Displacement Resolution Micro Stepper Motor |
||
Deskripsi Produk
SM15-77L-T 2 Phase 15mm Miniature Slider Screw Stepper Motor 9V DC Pm Stepper Motor
Product Description
The SM15-77-TL is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. This design enables the screw to generate thrust while rotating, providing precise motion control.
Key features include:
- 18° basic step angle
- 20 steps per revolution
- 0.02mm displacement resolution for precise control
- Subdivision drive mode capability
Our team brings over 10 years of stepper motor design, development, and production experience. We offer custom product development and auxiliary design services to meet specific customer requirements.
Design Layout (Unit:mm)
Specification
| Model No. | SM20-77L-T |
|---|---|
| Motor diameter | 15mm |
| Rated Voltage | 9V DC |
| Coil Resistance | 15±10% ohm/PHASE(20℃) |
| Current Per Phase | 600 mA/Phase(1000pps) |
| No.Of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Excitation Method | 1-2Phases Drive |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 230 g AT 700 pps |
| Max Response Frequency | More Than 1300 PPS |
| Max Staring Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50MΩ DC 500V |
| Operating Temperature Range | -0~+55℃ |
| Motor surface temperature | 80℃ or less |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has been specializing in producing micro motors and accessories since 2011. Our main products include micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers.
With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, dependability, and quality, Vic-Tech Motor continues to pioneer in global markets by seeking international partners.
FAQ
1. Who are we?
Based in Jiangsu, China since 2011, we serve domestic (35%), North American (25%), Northern European (20%), Western European (10%), and Southeast Asian (10%) markets with a team of 51-100 professionals.
2. How can we guarantee quality?
- Pre-production samples before mass production
- Final inspection before shipment
3. What can you buy from us?
Stepper motors, linear motors, geared motors, micro motors, BLDC motors
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering custom design services for stepper motors, geared motors, underwater thrusters, and motor controllers.
5. What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Options: T/T, Credit Card, PayPal, Cash (USD, EUR, CNY)
Languages: English, Chinese
