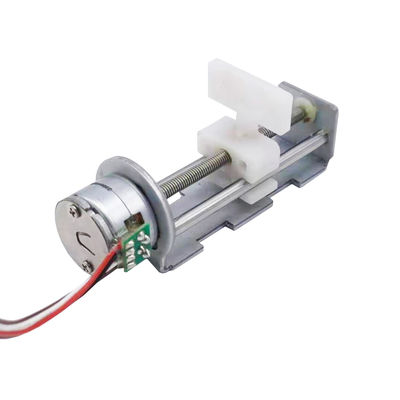

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | SM15-45L |
| Kuantitas min Order | 2 |
| Harga | $6.31-15 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Diameter motor | 15mm | Tegangan Dinilai | 6VDC |
|---|---|---|---|
| Ketahanan kumparan | 15±10% ohm/FASE(20℃) | Arus Per Fasa | 400 mA/fase (1000pps) |
| Jumlah Fase | 2 fase | Sudut langkah | 18°/langkah |
| Metode eksitasi | Drive 2-2-phase | Mode drive | Penggerak Bipolar |
| Dorongan tarik keluar | Lebih dari 200 g pada 500 pps | Frekuensi respons maksimal | Lebih dari 1200 pps |
| Frekuensi menatap maksimal | Lebih dari 900 hal | Kelas isolasi | Kelas E untuk kumparan |
| Kekuatan Isolasi | 100 V AC selama satu detik | Resistensi isolasi | 50mΩ DC 500V |
| Kisaran suhu operasi | -0 ~+55 ℃ | ||
| Menyoroti | 385mA Micro Stepper Motor,0.02mm Resolution Permanent Magnet Stepper Motor,6V DC 2 Phase Stepper Motor |
||
Deskripsi Produk
15mm Screw Slider Stepper Motor 2 Phase PM Micro Stepper Motor
The SM15-45L is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. The screw rotation generates thrust, with a basic step angle of 18 degrees (20 steps per revolution) achieving a displacement resolution of 0.02mm for precise control. The actuator uses subdivision drive mode to meet application requirements.
Our team brings over 10 years of stepper motor design, development, and production experience, offering custom product development and auxiliary design services tailored to your specific needs.

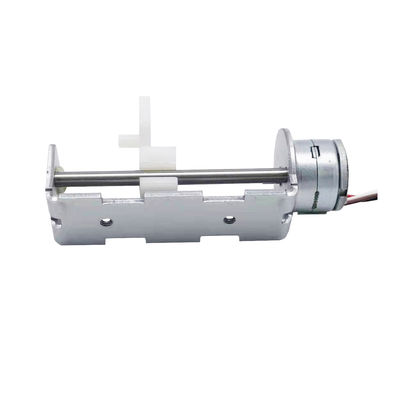

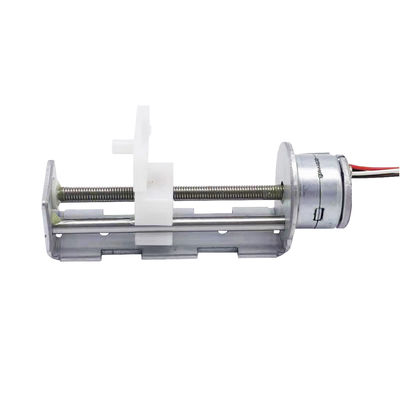

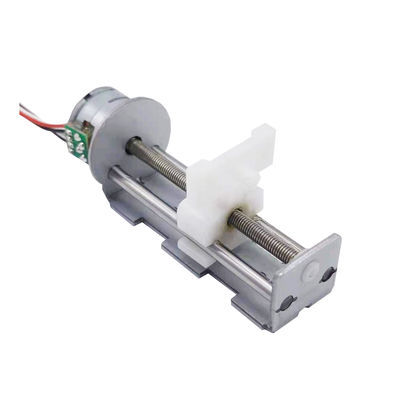

Product Images
Design Layout (Unit: mm)
Specifications
| Model No. | SM20-45L-S |
|---|---|
| Motor diameter | 15mm |
| Rated Voltage | 6V DC |
| Coil Resistance | 15±10% ohm/PHASE(20℃) |
| Current Per Phase | 400 mA/Phase(1000pps) |
| No.Of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Excitation Method | 2-2Phases Drive |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 200 g At 500 pps |
| Max Response Frequency | More Than 1200 PPS |
| Max Staring Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50MΩ DC 500V |
| Operating Temperature Range | -0~+55℃ |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
