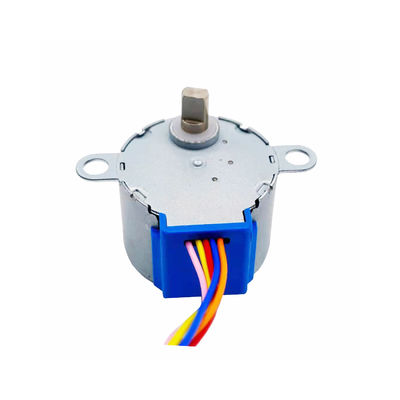

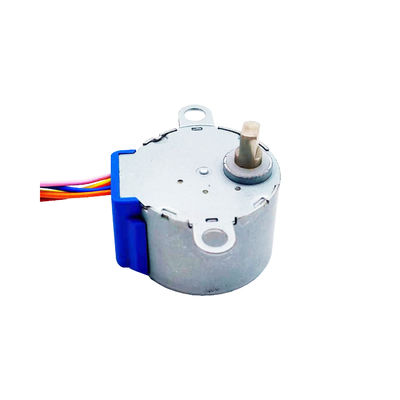

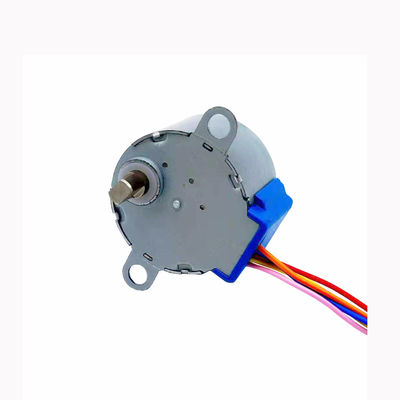

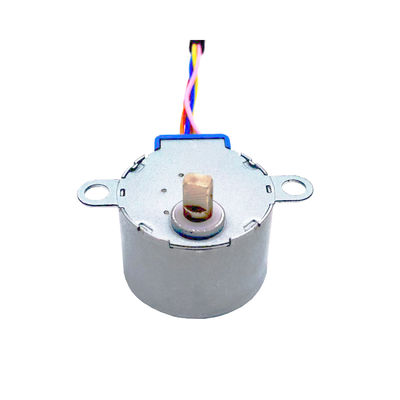

24mm Diameter Permanent Magnet Stepper Motor with Gearbox 385mA Current 5v 12v 24v Voltage
| Tempat asal | Jiangsu, Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | 24byj48- |
| Kuantitas min Order | 5 |
| Harga | $0.68-3 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Fase | 2 | Arus Per Fasa | 385mA |
|---|---|---|---|
| Perlawanan | 18 ~ 300Ω | Torsi tarik | ≥98mn*m |
| Torsi Penahan | ≥29.4mn*m | Bongkar frekuensi pull-in | ≥500pps |
| Sudut langkah | 5.625 °/64 | Rasio gigi | 16: 1 ~ 85: 1 |
| Diameter motor | 24mm | Tegangan Dinilai | 12v |
| Perlawanan pada 25 ℃ | 70Ω | Rasio reduksi | 1/32 |
| Frekuensi tarikan tanpa beban | ≥800HZ | Kenaikan suhu | ≤60K |
| Tingkat kebisingan | ≤45dB(A) | ||
| Menyoroti | 24mm Diameter Permanent Magnet Stepper Motor,385mA Current Micro Stepper Motor,5v 12v 24v Voltage Geared Stepper Motor |
||
Deskripsi Produk
24BYJ48 24mm Diameter Permanent Magnet Stepper Motor with Gearbox
This precision stepper motor is primarily designed for sanitary ware applications including thermostatic valves and hot water faucets for automatic water temperature adjustment. It's also suitable for any application requiring precise position control through open-loop operation, enabling cost-effective positioning solutions.
Applications include gas valve control, water purifier valves, instrumentation, and various automation fields. The motor offers flexible connection options with various wire types and lengths, including FPC/FFC cables. Output configurations can be customized with gears, pulleys, V-grooves, or turbo screws. Mounting plate shape and outlet angle can be adjusted to meet specific requirements.
Customization Options
Our motors can be customized with the following parameters:
- Voltage range: 5-24V
- Gear ratio customization
- Gear material selection
- Output shaft configuration
- Motor cap design options
Design Layout (Unit: mm)
Technical Specifications
| Motor diameter | 24mm |
| Rated voltage | 12V |
| Resistance (25℃) Ω phase ±8% | 70Ω |
| Step Angle | 11.25°/32 |
| Reduction ratio | 1/32 |
| Pull-in torque | ≥58.8mN.m |
| Custom torque | ≥29mN.m |
| No-load pull-in frequency | ≥500HZ |
| No-load pull frequency | ≥800HZ |
| Insulation resistance DC.500v | ≥10 |
| Insulation dielectric strength | No breakdown or flying fox |
| Temperature rise 400HZ 3 min | ≤60K |
| Noise | ≤45dB(A) |
Packaging & Delivery
Selling Units: Single item in plastic inner box with outer paper box packaging. Standard package: single carton containing 100-1000 pieces. Lead Time: 30 days after deposit.
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to quality, reliability, and innovation, Vic-Tech Motor continues to expand globally as an industry leader.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, we serve domestic (35%), North American (25%), Northern European (20%), Western European (10%), and Southeast Asian (10%) markets. Our team consists of 51-100 professionals.
2. How do we guarantee quality?
We conduct pre-production sampling and final inspection before shipment to ensure consistent quality standards.
3. What products do we offer?
Our product line includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why choose us?
With over a decade of specialization in micro motor production, we offer custom design services and technical expertise backed by extensive R&D experience.
5. What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP), payment methods (T/T, Credit Card, PayPal, Cash), and currencies (USD, EUR, CNY). Our team communicates in English and Chinese.
