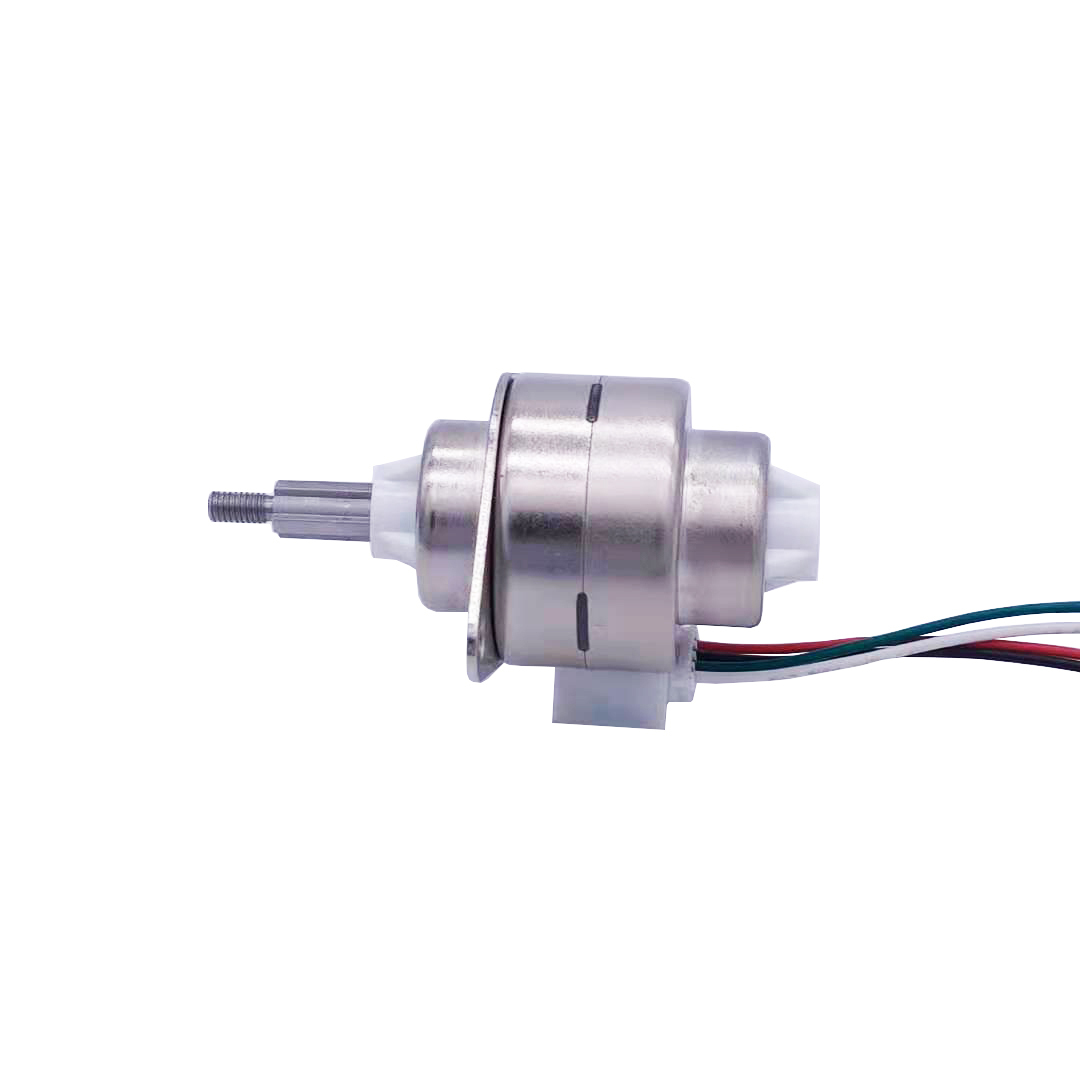

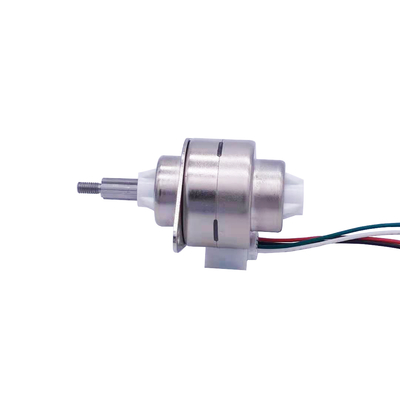

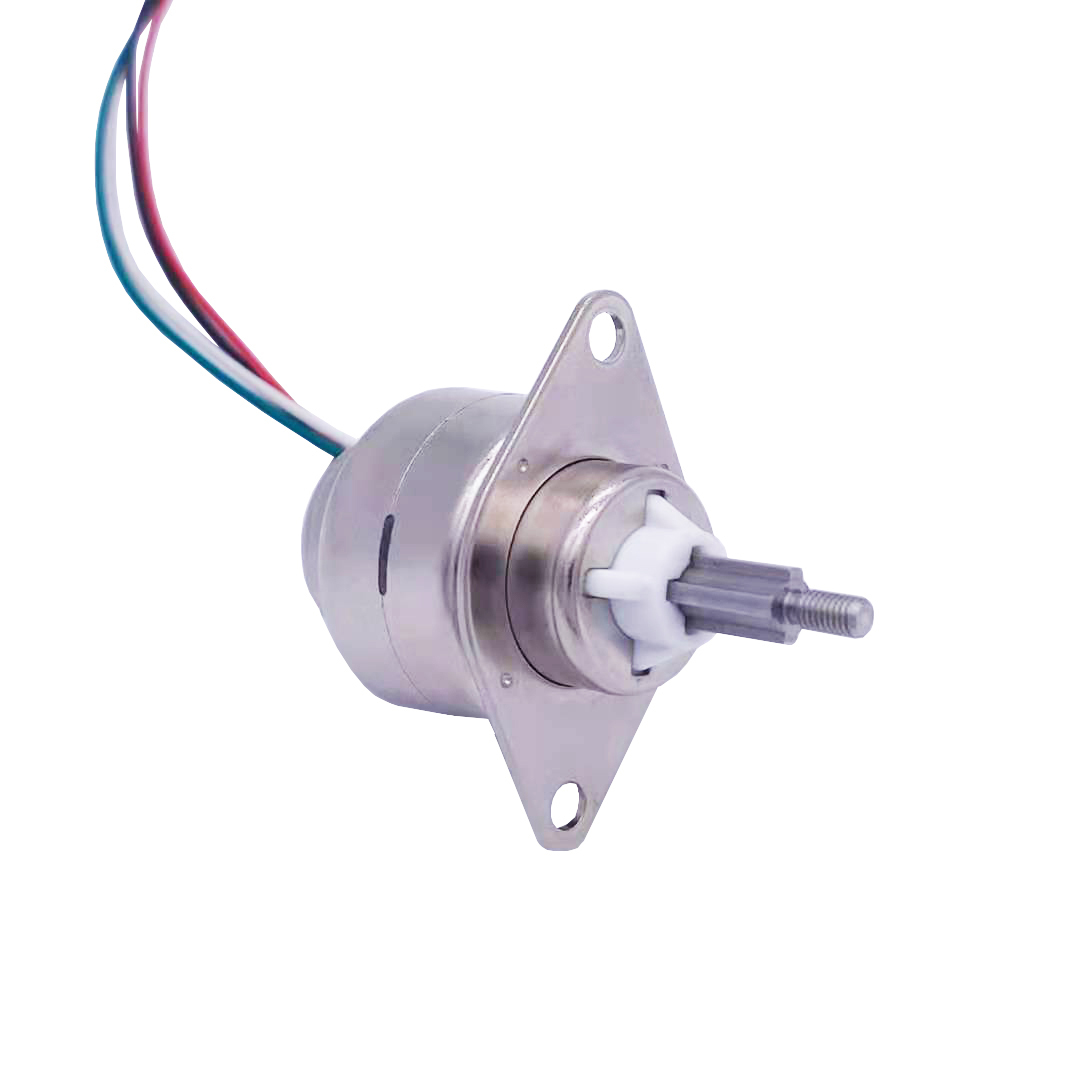

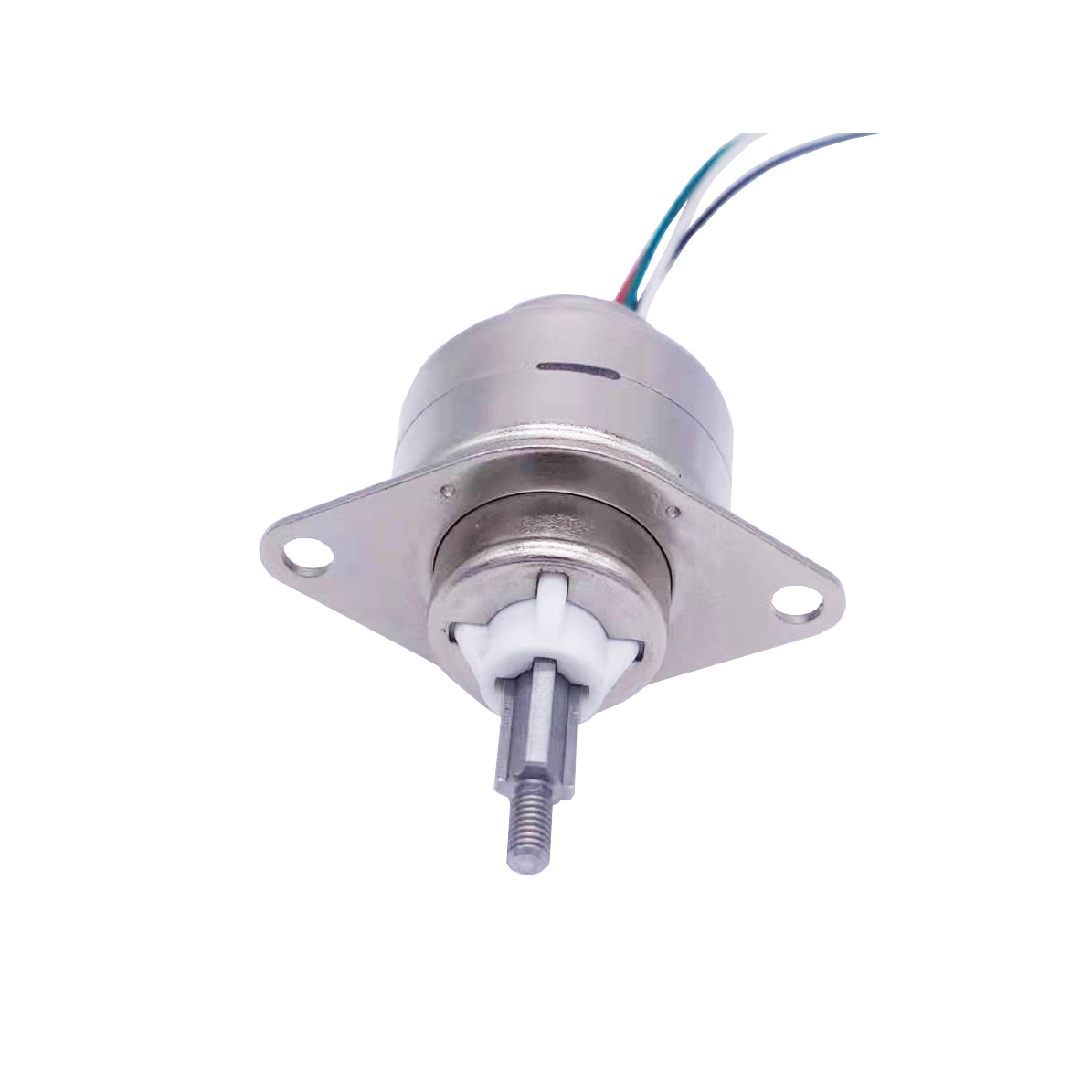

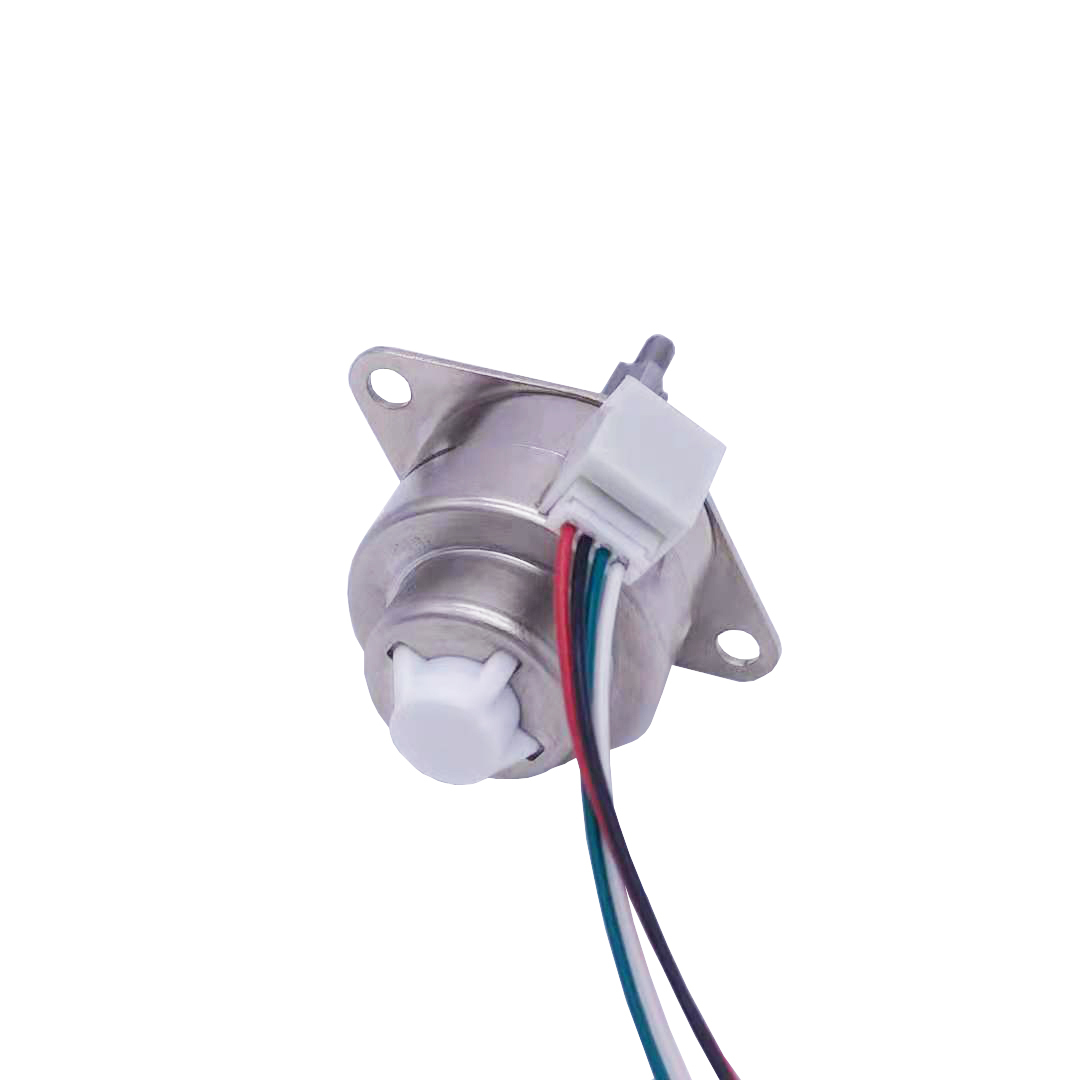

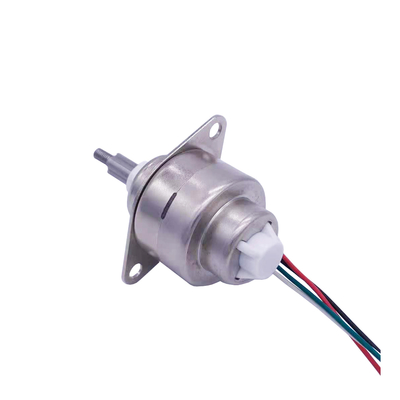

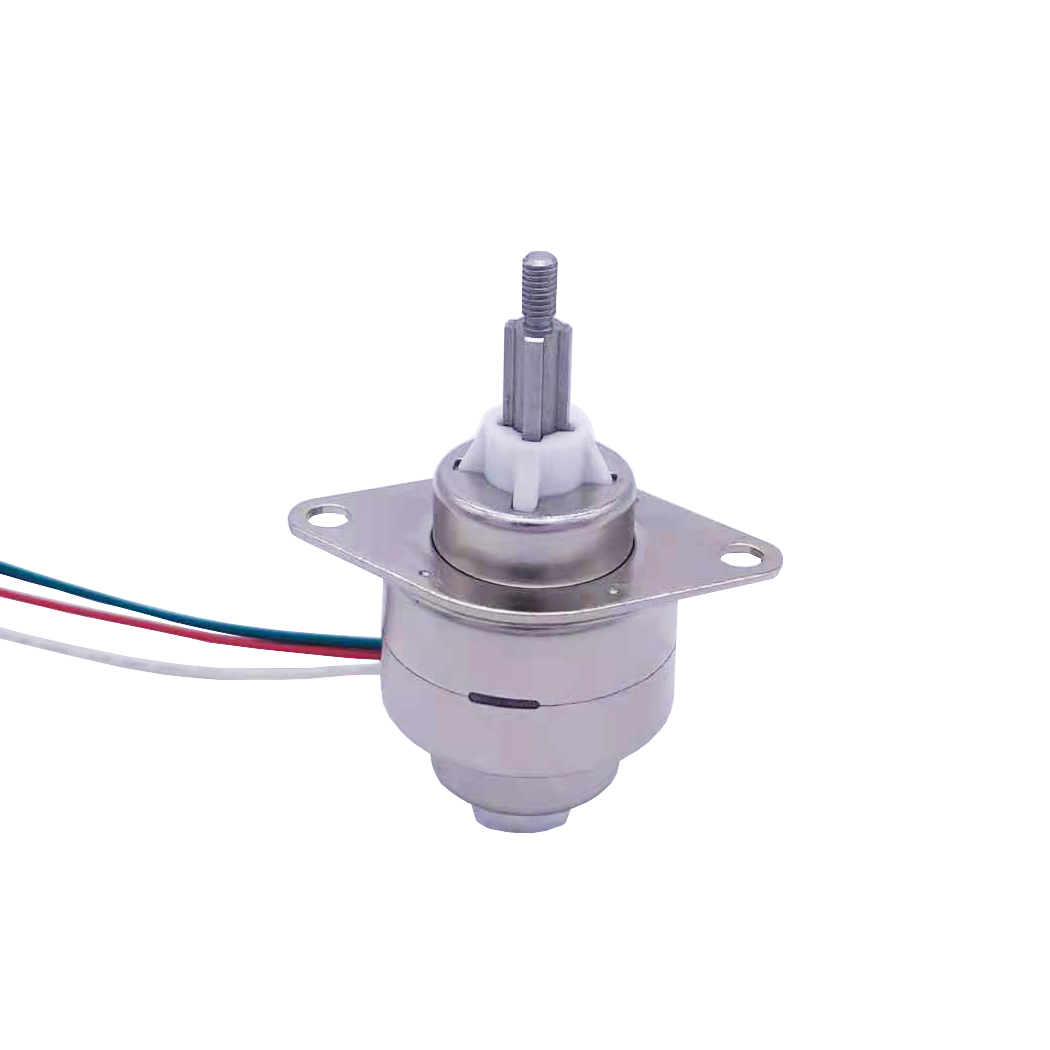

25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
| Place of Origin | Jiangsu, China |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Model Number | VSM25-48S-0127-13-002 |
| Minimum Order Quantity | 2 |
| Harga | $6.50-30 |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Motor diameter | 25mm | Rated voltage | 5V |
|---|---|---|---|
| Power | 3.85W | Phase Current | 370mA |
| Phase Resistance | 13.5(±10%) Ohm/20C | Phase inductance | 12.5(±20%) Mh/1kmz |
| Step angle | 7.5° | Screw Lead | 0.6096mm |
| Step Travel | 0.0127mm | Linear Force | 55N/300PPS |
| Stroke | 13mm | Insulation Resistance | 20mΩ (DC 500V) |
| Operating Temp Range | -20~+55℃ | Storage Temp Range | -40~+100℃ |
| Mass | 50g | ||
| Menyoroti | 25mm linear stepper motor,7.5 degree stepper motor,13mm stroke stepper motor |
||
Deskripsi Produk
High Positioning Accuracy 25mm Diameter 7.5 Degree Linear Stepper Motor 13mm Stroke
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | Other |
| Phase | 2 |
| Type | Permanent Magnet |
| Current / Phase | 385mA |
Product Description
This 25mm diameter stepper motor features a fixed shaft design, making it ideal for applications with short stroke requirements where rotation stop devices cannot be provided. Suitable for precision instruments and electronic products, this motor finds wide application across various industrial fields.
Customization options are available. Please contact us for specific requirements.
Specifications
| Motor diameter | 25mm |
| Rated voltage | 5V |
| Power | 3.85W |
| Phase Current | 370mA |
| Phase Resistance | 13.5(±10%) Ohm/20°C |
| Phase inductance | 12.5(±20%) Mh/1kHz |
| Step angle | 7.5° |
| Screw Lead | 0.6096mm |
| Step Travel | 0.0127mm |
| Linear Force | 55N/300PPS |
| Stroke | 13mm |
| Insulation Resistance | 20mΩ (DC 500V) |
| Insulation Class | B |
| Operating Temp Range | -20~+55°C |
| Storage Temp Range | -40~+100°C |
| Mass | 50g |
Packing & Delivery
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we offer custom design and development services. Through our commitment to quality and reliability, Vic-Tech Motor continues to pioneer in global markets.
