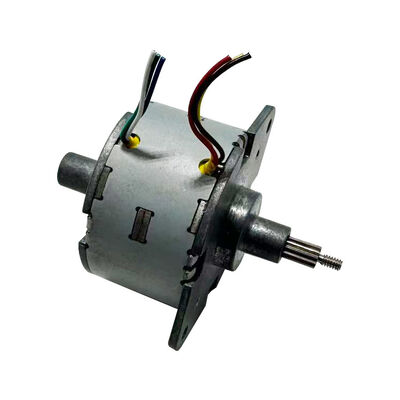

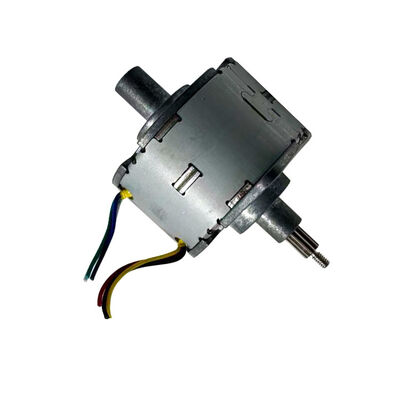

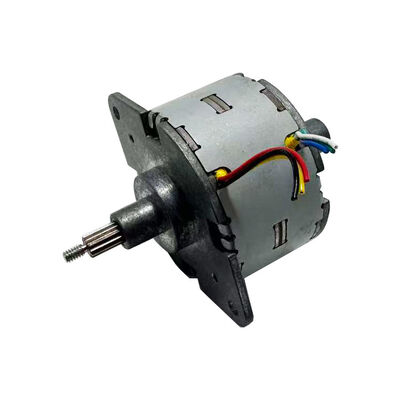

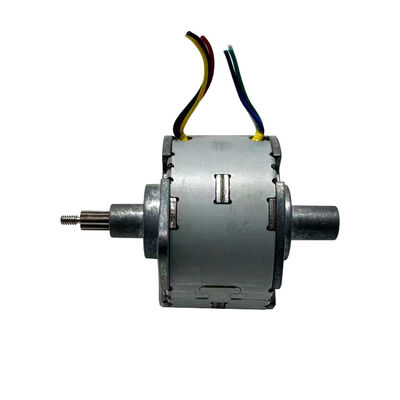

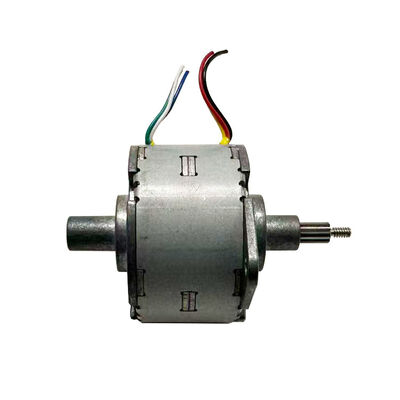

12Vdc high torque linear stepper motor compact fixed axis linear motor applied to valve automation equipment
| Tempat asal | Cina |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | VSM46L-048-0254-24-01 |
| Kuantitas min Order | 1 unit |
| Harga | $8.5~$30 /Unit |
| Kemasan rincian | Paket ekspor standar, atau dapat disesuaikan |
| Waktu pengiriman | 15-30 Hari Kerja |
| Syarat-syarat pembayaran | Western Union, T/T, L/C, MoneyGram |
| Menyediakan kemampuan | 100000 Unit/tahun |
Detail produk
| Perlawanan | 29Ω±10% | Fase | 2 |
|---|---|---|---|
| Jenis | Magnet Permanen | Memegang Torsi | 80n |
| Sudut langkah (derajat) | 7,5° | voltase | 5V ~ 24V |
Deskripsi Produk
Compact 46mm diameter high torque fixed axis linear motor
This is a fixed axis linear stepper motor with a diameter of 46mm, designed specifically for high-precision linear motion. The installation hole spacing is 55.5mm, the effective stroke of the motor screw is 24mm, and the output shaft has a threaded shaft to accommodate the customer's docking parts
The diameter of the screw is 5.5 millimeters, with a step size of 0.0254 millimeters, which means that for every step taken by the motor, its stroke is 1.2192 millimeters. This is crucial for high-precision control and is suitable for short stroke situations where no anti rotation device can be provided
If you want to customize parameters such as coil resistance, cable length, etc., please feel free to contact us at any time.
Mechanical Dimension:MM
Technical Features
This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
-
Medical Equipment
-
Automatic Control
-
3D Printer
-
Precision Calibration
-
Precision Fluid Measurement
-
Precise Position Movement
Specifications
|
Product Name |
PM46 linear stepper motor |
|
Model |
VSM46L-048-0254-24-01 |
|
Resistance |
29Ω±10% |
|
Pull in frequency |
200PPS |
|
The MarkThrust |
80N at 12V 100PPS |
|
Inductance |
52REF (mH) |
|
Mounting |
rear axle |
|
Mounting |
20.5±0.1mm /rear axle |
|
Insulation Class |
class B |
|
lead wrie |
UL 1061 AWG26 |
|
OEM & ODM Srvice |
Available |
Typical application scenario characteristics:
Short travel distance (usually less than 50mm)
Unable to provide external anti rotation device
High requirements for structural compactness
Need to directly push the load
Customization service
The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer requirements
Selection precautions
Limited lateral bearing capacity: The spline sleeve of a fixed shaft motor is mainly designed to prevent rotation and cannot withstand large lateral forces. If lateral load is required, it is recommended to choose a model with ball spline design.
Installation method: Usually, the motor body is fixed and the screw directly pushes the load. If the load needs to be fixedly connected to the screw, attention should be paid to whether there is an over positioning problem in the system.
Travel restrictions: Fixed shaft type is more suitable for short stroke applications, and it is recommended to use through shaft type for long stroke.
Environmental requirements: The standard product is designed for dry, non corrosive environments and has no IP protection level. Extra protection is required in harsh environments.
The relationship between thrust and speed: thrust decreases with increasing operating speed, and the selection should refer to the speed/thrust curve
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
