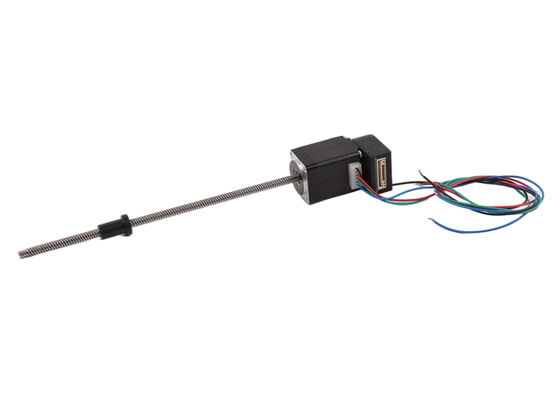

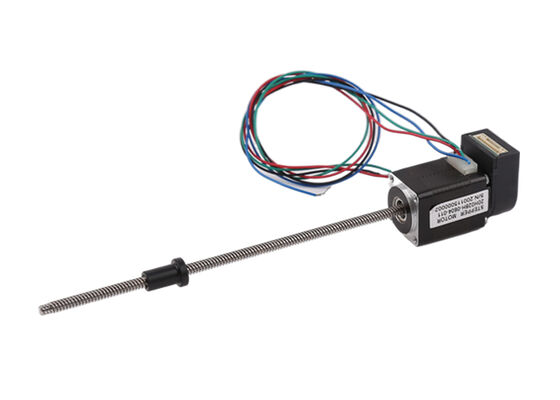

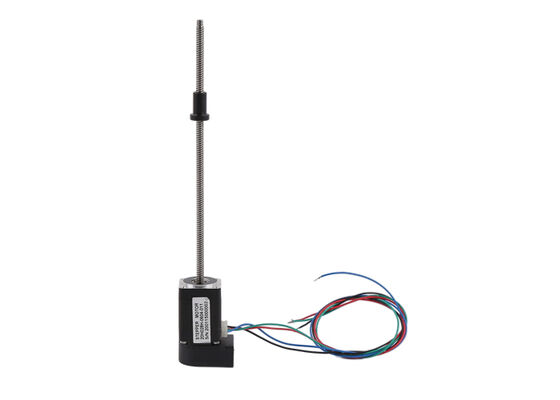

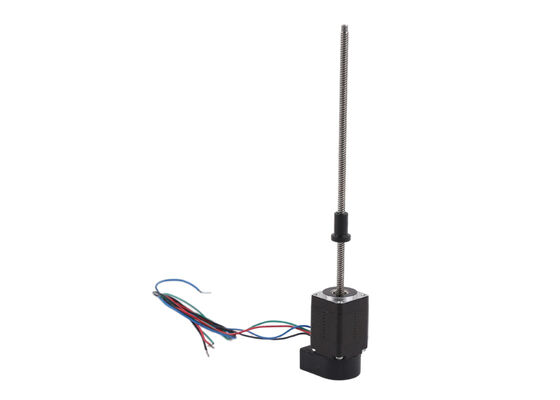

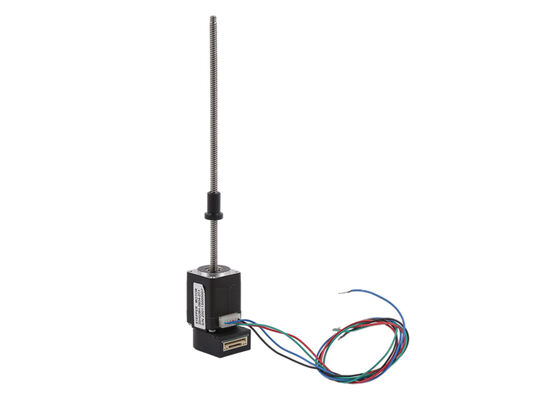

NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.

  • NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
  • NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
  • NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
  • NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
  • NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
  • NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
Tempat asal Cina
Nama merek VIC-TECH
Sertifikasi RoHS, ISO9001
Nomor model Nema 8
Kuantitas min Order 1 unit
Harga $55~$80/Unit
Kemasan rincian Paket standar ekspor dalam karton bergelombang (produksi massal).
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran Western Union, T/T, L/C, MoneyGram
Menyediakan kemampuan 100000 Unit/tahun

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Perlawanan 3,7Ω±15% Fase 2 fase, 4 langkah
Jenis motor stepper linier hibrida Sudut langkah 1,8 Derajat
Tipe encoder Encoder Optik Resolusi Encoder 500/1000/2000 PPR
Menyoroti

NEMA 8 stepper motor 1.8° step angle

,

2-phase hybrid stepper motor 20mm diameter

,

linear stepper motor with bipolar drive
Tinggalkan pesan
Deskripsi Produk

VSM25C-48S External Drive Long Leadscrew Permanent Magnet Linear Stepper Motor, 25mm Diameter



This is a NEMA 8 bipolar hybrid stepper motor with high resolution and equipped with a 500/1000/2000 PPR photoelectric encoder.

A hybrid stepper motor with a diameter of 20.2mm.

This motor is a standard NEMA 8 hybrid motor and is interchangeable with other hybrid motors.

The lead screw of this motor is a Tr3.5*4mm pitch trapezoidal lead screw.

The encoder is a high-resolution photoelectric encoder, available in 500, 1000, and 2000 PPR specifications.

PPR refers to pulses per revolution.

For example, using a 1000 PPR encoder, the encoder will generate 1000 pulse signals for one revolution of the motor, providing very high accuracy.

This motor is ideal for high-precision control and closed-loop systems.





NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter. 0







Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement



Plus tt has extra low noise and high stability.

NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter. 1

Design Layout (Unit:mm)

NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter. 2

Parameter sheet:

Product model 20BYGH29
Motor type Bipolar hybrid stepper motor
Motor diameter (NEMA8) 20.2mm
Coil resistance 3.7 Ohm±15%
Step angle 1.8 degrees
Lead screw type

3.5mm diameter*4mm pitch

Trapezoidal leas screw
Encoder type Optical encoder
Resolution 500PPR, 1000PPR, 2000 PPR



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter. 3
