micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor

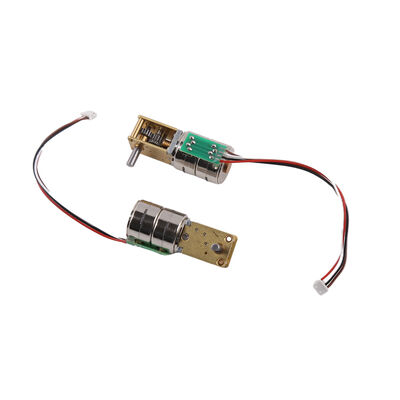

  • micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor

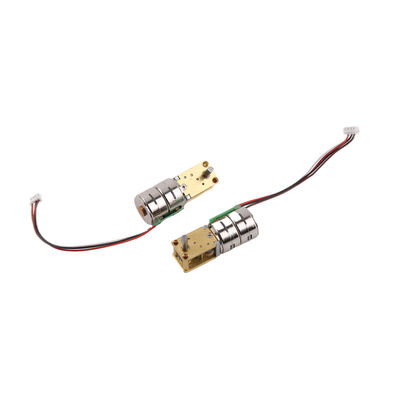

  • micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor

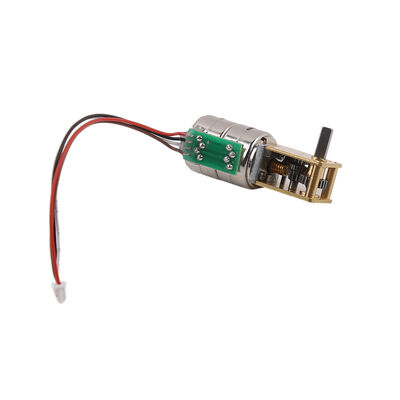

  • micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor

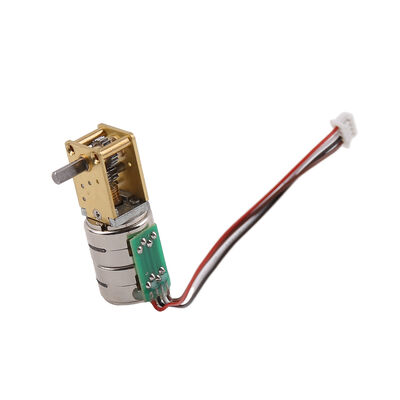

  • micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor

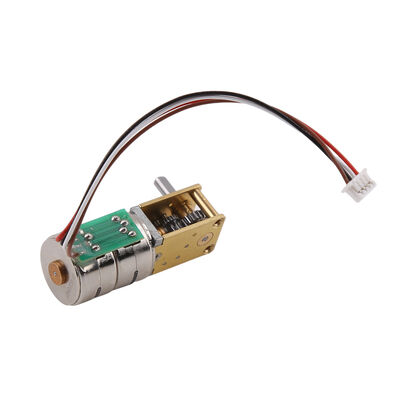

  • micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor
Tempat asal Jiangsu, Cina (Daratan)
Nama merek VIC-TECH
Sertifikasi RoHS
Nomor model SM15(ganda)-1812-118-8D
Kuantitas min Order 1Satuan
Harga $3.8~$8/Unit
Kemasan rincian <i>Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 10
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran T/T, Western Union, MoneyGram
Menyediakan kemampuan 1000000 Unit/tahun

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Sudut Langkah (derajat) 18 Derajat Fase 2
Voltase 3.3V~5V Arus / Fase 280mA/Fase
Perlawanan 31Ω±10% Berat 16G
Rotasi CW/CCW Jenis Magnet Permanen
Menyoroti

5V compact stepper motor

,

high torque worm gear motor

,

15mm diameter geared stepper motor
Tinggalkan pesan
Deskripsi Produk

15mm diameter worm gearbox stepper motor 5V right angle gearbox micro motor

This worm gear gearbox motor is composed of a 15mm diameter micro stepper motor and a 10 * 12 * 18 precision metal gearbox, and the reduction ratio can be customized according to customer needs.
Gear reduction ratio: 1:21 1:42 1:118 1:236 1:302 1:399 1:603 1:515 1:798 1:1030, and the efficiency of the reduction box is 20%~30%. Please pay attention to efficiency when choosing this reduction motor
Customers can match the speed ratio according to different torque and speed requirements, while
Given an appropriate driving frequency, a stepper motor can achieve the goal of determining speed and torque.


This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!





Mechanical Dimension:MM

micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor 0

micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor 1

Specifications

Product Name 15mm micro stepper motor
Model SM15(double)-1812-118-8D
Rated Voltage 5 V
Current Per Phase  130mA /phase
Coil Resistance 39Ω±10%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
MAX. STARTING FREQUENCY 900 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY 1200 PPS min. (AT 5.0 V DC)
PULL IN TORQUE 3.5 gf-cm min. (AT 500 PPS , 5.0V DC)
PULL OUT TORQUE 4.2 gf-cm min. (AT 500 PPS , 5.0V DC)
Insulation Class Class E for Coils
Insulation Strength 100V AC FOR ONE SECOND
Insulation Resistance 50MΩ DC 500 V
Operating Temperature Range -0~+55 ℃
Weight 18g
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor 2



Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor 3



Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor 4
