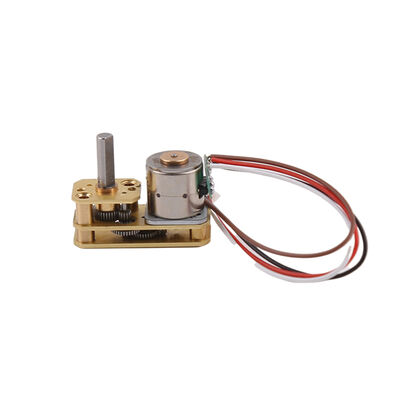

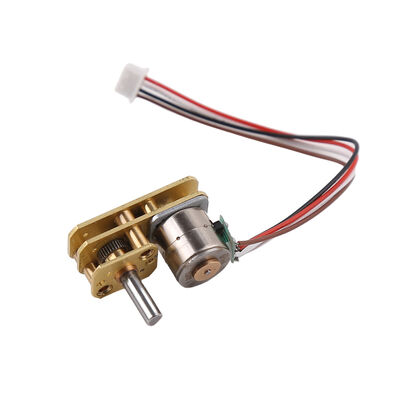

5V Worm Gear Stepper Motor 10mm Horizontal Right Angle Stepper Motor 2 Phase
| Place of Origin | China |
|---|---|
| Nama merek | Vic-Tech motor |
| Sertifikasi | RoHS |
| Model Number | SM10-817G |
| Minimum Order Quantity | 1 pc |
| Harga | US$2.7~10 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection |
| Delivery Time | 3~15 days |
| Payment Terms | T/T, D/P |
| Supply Ability | 100000/month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Type | Permanent Magnet Geared Stepper Motor | Phase | 2 Phase |
|---|---|---|---|
| Current / Phase | 0.15A | Step Angle(degrees) | 1.8 Degree |
| Rated Voltage | 5V Or As Request | Motor Length | 16 Mm |
| Motor Weight | 18 G | Resistance | 40 ±10%ohm |
| Shaft | Customizable | Gear Reduction Ratio | 10:1~1000:1 |
| Menyoroti | 5V worm gear stepper motor,10mm right angle stepper motor,2 phase horizontal stepper motor |
||
Deskripsi Produk
10mm Geared Stepper Motor 5V Horizontal Right Angle Motor 2 Phase Mini Gear Motor
This is a 1024GB series geared motor, which is a special product using a 10MM stepper motor and a special connection of a 10*24mm reducer. It is suitable for laser instruments, medical equipment, fiber fusion splicers, etc. match deceleration
If the speed decreases, the torque increases.
All its components are processed in precision equipment, and at the same time, it adopts advanced and reliable assembly technology, and has the characteristics of high transmission efficiency, low noise and high reliability.
The reduction ratio is 1: 10 1: 501 1: 100 1: 15 1: 200 1: 350 1: 380, can be customized 1: 500 1: 700 1: 1000
The reduction ratio can be selected according to the different requirements of torque speed,
Our company team has more than 10 years of experience in the design, development and production of micro motors, so we can develop and design products according to the special needs of our customers!
Customer demand is the direction of our efforts, please feel free to contact us at any time!
SPECIAL IMPORTANT REMINDER
Due to the use of the worm gear structure, the entire motor has a compact structure, but the efficiency of this structure is relatively low, so special attention should be paid when selecting it.
SM10-817Ggearbox stepper main parameters:
| PRODUCT NAME | 10 mm worm geared stepper motor |
| MODEL | SM10-817G |
| RESISTENCE | 40Ω±7% (optional 20 15 10 ohm) |
| MAX. STARTING FREQUENCY | 900 PPS min. (AT 5.0 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 5.0 V DC) |
| PULL IN TORQUE | 3.5 gf-cm min. (AT 500 PPS , 5.0V DC) |
| PULL OUT TORQUE | 4.2 gf-cm min. (AT 500 PPS , 5.0V DC) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 10~1000 |
| OEM & ODM SERVICE | AVAILABLE |
| EFFICIENCY | 10~20% |
| SPEED RANGE | Motor(0~3000RPM) Out shaft(0~150rpm) |
SM10-817Ggear stepper motor out drawing:
SM10-817G gear stepper torque curve:
Since there are many speed options, the output torque can be the torque * speed ratio * efficiency of the motor, and the specific situation will generally be determined after testing the actual sample. The following is the torque curve of the SM15 stepper motor for reference.

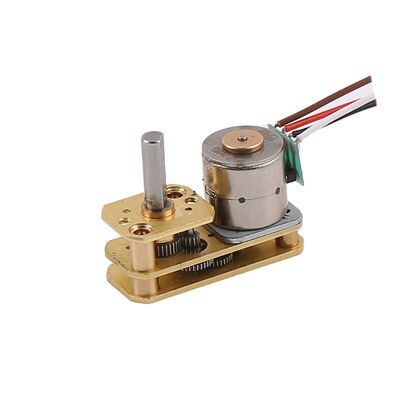

SM10-817G gear stepper motor display:
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
SHAFT TYPES:
Out shaft standard as follows, also can customized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
