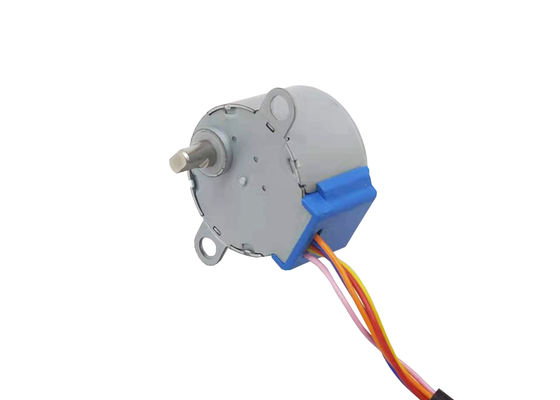

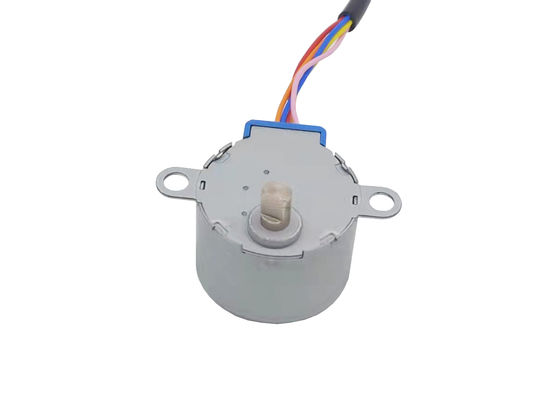

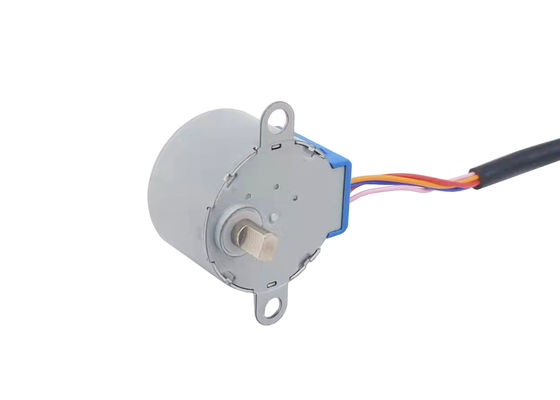

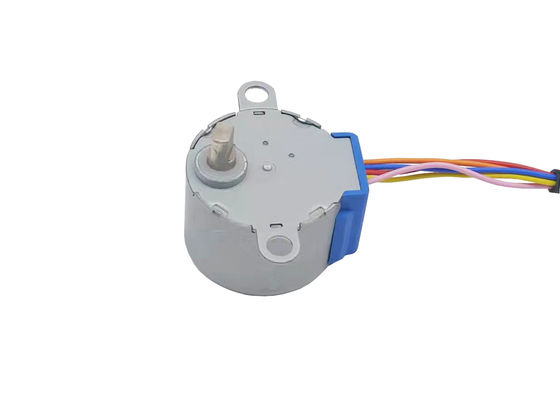

24BYJ48 Geared Stepper Motor with 86.4:1 Gear Ratio 5.625° Step Angle and Customizable Gear Ratio
| Tempat asal | CINA |
|---|---|
| Nama merek | VIC-TECH |
| Sertifikasi | RoHS |
| Nomor model | 24BYJ48-612 |
| Kuantitas min Order | 1unit |
| Harga | $0.75~3/unit |
| Kemasan rincian | Paket ekspor standar, atau dapat disesuaikan |
| Waktu pengiriman | 15-30 hari kerja |
| Syarat-syarat pembayaran | MoneyGram, Western Union, Kartu Kredit, T/T, L/C |
| Menyediakan kemampuan | 10000Unit/bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Jenis | Gearbox Motor Stepper | Fase No. | 4 fase (Uni-polar) |
|---|---|---|---|
| Ketahanan kumparan | 60Ω/fase | Tegangan Dinilai | 5V DC |
| Rasio gigi | 86.4：1 | Sudut langkah | 5.625°/86.4 |
| Menyoroti | 86.4:1 Gear Ratio Geared Stepper Motor,5.625° Step Angle 24BYJ48 Motor,Customizable Gear Ratio Gearbox Stepper Motor |
||
Deskripsi Produk
24BYJ48 Geared Reducer Stepping Motor
A 24mm diameter permanent magnet stepper motor equipped with a gearbox, available in multiple voltage options (5V, 12V, 24V) and gear ratios. This affordable and reliable motor features Class B insulation, PBT terminal box, and metal gears, making it ideal for various applications including home appliances, HVAC systems, and industrial automation.
Key Features
- Available gear ratios: 16:1, 25:1, 32:1, 48.8:1, 64:1, 85:1
- Voltage options: 5V, 12V, 24V DC
- Class B insulation
- PBT terminal box with metal gears
- Customization available for gear ratio, coil resistance, phases, and connector type
- Complies with Environmental Protection Materials Management Regulations
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | 24BYJ48 motor |
| Model No. | 24BYJ48 |
| Rated Voltage | 5V DC, 12V DC, 24V DC |
| Phase No. | 4 |
| Resistance (25℃) | 18Ω, 60Ω, 70Ω, 200Ω, 300Ω |
| Output step angle | 5.625° |
| Gear Ratio | 16:1, 25:1, 32:1, 48.8:1, 64:1, 85:1 |
| Torque | ≥55mN.m (5V 100PPS) |
| Unload pull-in frequency | ≥500Hz |
| Unload pull-output frequency | ≥900Hz |
| Insulation resistance | ≥100mΩ |
Performance Data
| Voltage (V) | Resistance (Ω) | Pull-in torque 100PPS (mN*m) | Detent Torque (mN*m) | Unload pull-in Frequency (PPS) |
|---|---|---|---|---|
| 5 | 18 | ≥98 | ≥29.4 | ≥500 |
| 12 | 60 | ≥117 | ≥29.4 | ≥500 |
| 12 | 70 | ≥68.7 | ≥29.4 | ≥500 |
| 12 | 200 | ≥68.7 | ≥29.4 | ≥500 |
| 12 | 300 | ≥58.8 | ≥29.4 | ≥500 |
Design Drawing

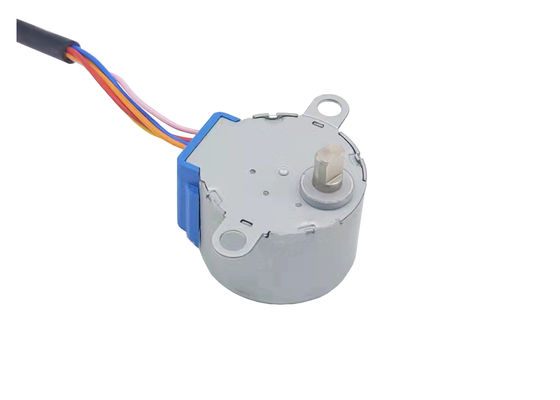

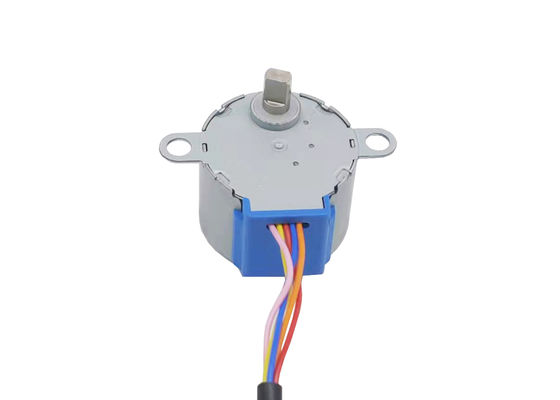

Product Display
Technical Features
| Application | Highlights |
| HVAC/R Valve Actuation | Winding possibilities - Bipolar |
| Office Automation Printers, Copiers, Data storage | Maintenance free - motor is brushless |
| Medical Applications Pill dispensing Analysers | Cost effective - compact design, lower integration cost |
| Other Industries & Applications Robotics | Digitally controlled - Easy to use with a micro processor |
| Telecommunication Antennae positioning | Switching lines Open loop control - No encoders necessary |
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Wire Connection Types
Motor input method with Pin type, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
Shaft Types
Standard output shaft types available, with customization options based on user drawings. Contact customer service for more types.
- Round Type: DIA3mm, 4mm, 5mm
- D-cut Type: DIA3-D2.5, DIA4-D3 etc
- Screw Type: M3, M4, M5 Serial
- Trape Type
- I-cut Type: DIA3-I2, DIA4-I3
- Other Type: Shaft with a hole etc
Fixture Cover Types
Regular models shown below, with special sizes available for customization.
Customization Options
- Step angle: (1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step
- Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1
- Customizable items: Voltage (5~24V), gear ratio, gear material, output shaft, motor's cap design
For custom requirements or additional information, please contact our customer service team.
