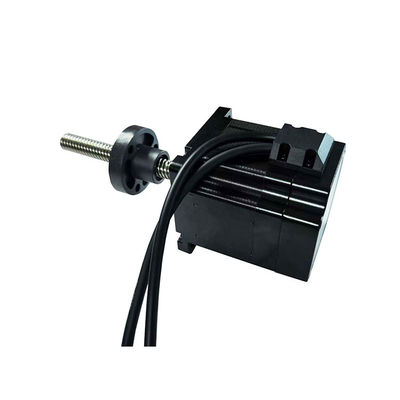

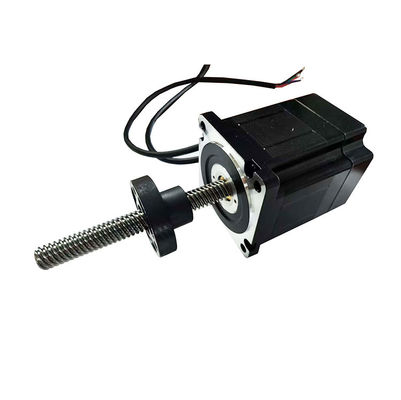

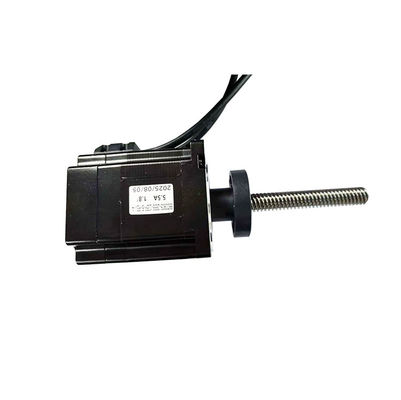

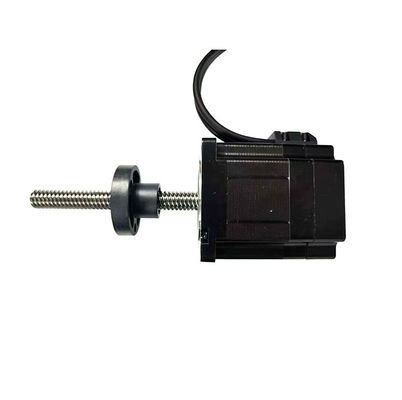

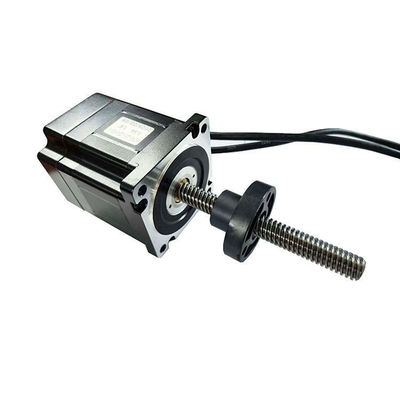

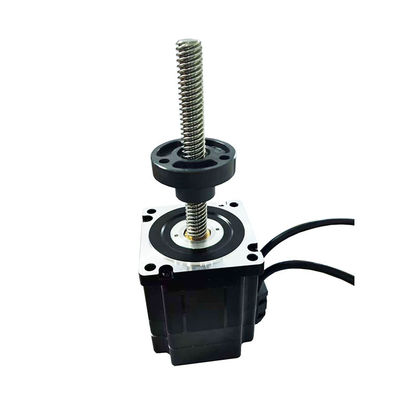

86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder

  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
  • 86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
Tempat asal CINA
Nama merek VIC-TECH
Sertifikasi RoHS, ISO9001
Nomor model SM86C0905
Kuantitas min Order 2 unit
Harga $180~$150/Unit
Kemasan rincian Paket standar ekspor dalam karton bergelombang (produksi massal).
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran Western Union, T/T, L/C, Moneygram
Menyediakan kemampuan 100000 Unit/tahun

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Perlawanan 0,45Ω/fase Fase 2 fase, 4 langkah
Jenis motor stepper linier hibrida Sudut langkah 1,8°
Dorongan Lebih dari 50KG Berat 2.6kg
Tipe encoder Encoder Optik Resolusi Encoder 1000 Ppr
Saluran pembuat enkode 3 saluran （A, B, Z）
Menyoroti

NEMA34 trapezoidal lead screw motor

,

hybrid stepper motor with encoder

,

86mm linear stepper motor
Tinggalkan pesan
Deskripsi Produk

86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder

This is a NEMA34 86mm size hybrid stepper motor with Tr lead screw.

Lead screw diameter is 15.875mm and screw lead is 12.7mm.

We have different lead screw diameter and lead for you to choose, based on your project requirement on linear speed and pushing force.

With bigger lead, motor’s linear speed is faster, while pushing force will be smaller.

The lead screw length is customizable.



For the encoder, it’s optical encoder with 3 channels (Channel A, B and Z)

Channel Z is index channel.

If you don’t need Channel Z, we can make the encoder with 2 channels.



The encoder resolution is 1000 PPR, 1000 PPR means when the motor rotate one round, the encoder will generate 1000 pulse signals.

We also have different resolution for you to choose:

200 PPR / 500 PPR / 1000 PPR / 2500 PPR

Also if you don’t need encoder, we can remove it, and the unit price of the motor will be lower.



If you want to do more design change, please feel free to contact us, and provide full customization service.


Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

Design Layout (Unit:mm)

86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder 0

Parameter sheet:

Product Model No.

86C0905-EN

Motor type

Hybrid stepper motor

Motor size

86mm (NEMA34)

Screw diameter type

Tr15.875*12.7mm

Encoder type

Optical encoder

Encoder resolution

1000 PPR

Step angle

1.8°

Pushing force (300PPS)

50KG


Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation


86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder 1
